Hobbyist Mini Machines
These versatile machines are ideal for the hobbyist, their small size make them ideal for use in the home workshop/garage. Whilst being small they retain a lot of the features found on larger industrial machines, either as standard or available as accessories.

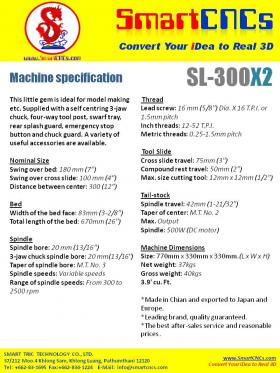

Mini Metalworking Lathe
This little gem is ideal for model making etc. Supplied with a self centring 3-jaw chuck, four-way tool post, swarf tray, rear splash guard, emergency stop button and chuck guard. A variety of useful accessories are available. Manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoHS compliant.
Swing over bed: 180mm.
Distance between centres: 300mm.
Hole through spindle: 20mm.
Spindle taper: MT3.
Tailstock taper: MT2.
Spindle speed low range: 0-1100rpm /- 10%. High range: 0-2500rpm /- 10%.
Output power: 250W.
Range of threads: Metric 0.4-2mm (10 thread pitches) or Imperial 12-52 TP (8 thread pitches).
Net/Gross weight: 37/40kg.
Packing size: 770 x 330 x 330mm.
