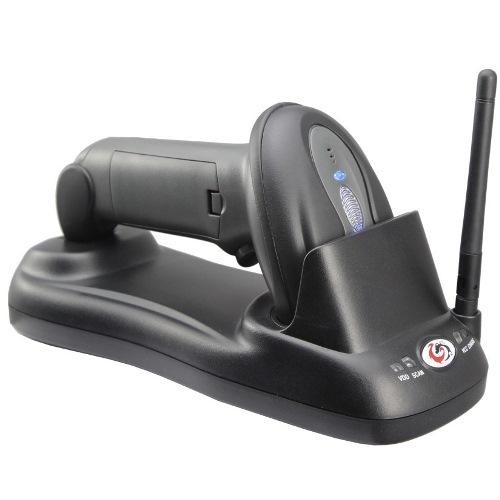

XL-9310 Wireless Barcode Scanner
Wireless induction charge without cable
The battery can be easily taken from the scanner
1 base frame can support 99 scanners
The communication distance on open places is up to 600m
Antiknock design: withstand 1.5M drops
Service life of button reaches up to 50 million times
Supporting the RS232,PS2 and USB interface
Full independent intellectual property rights
(having been award with multiple national patents)
XL-9310 Technical Specifications
PERFORMANCE PARAMETER
Light Source Visible Laser Diode 650nm
Scan Pattern Single Scan & Manual
Working Frequency Range 433 MHz ISM frequency
Communication Distance Up to 600m at open places
Scan Rate 100 times/second
Scan Precision 0.10mm(pcs0.9)
Scan Width 30mm@scan window, 220mm@200mm
Scan Depth of field 0-250mm (0.33mm pos0.9)
Decode Capability EAN-8, EAN-13, UPC-A, UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc.
Tilt & Elevation & Deflection 30°& 65°& 55°
Support Inferface RS232, PS2 and USB
Print Contrast 30% UPC/EAN 100%
Mention Pattern Buzzer, Indicator
MECHANICAL PARAMETER
Size L x W x H: 95mm x 70mm x 160mm
Weight 158g
Material ABS + PC
Cable Standard 2M straight
ELECTRICAL PARAMETER
Battery Capability 900mAh
Voltage 12Volts
Operating Current 85mA
Static Current 36mA
Laser Class Meet the Grade I National Criteria for Laser Safety
EMC CE & FCC DOC compliance
ENVIRONMENTALPARAMETER
Operating Temperature 0°Cto45°C
Storage Temperature -20°C to60°C
Humidity 5% to 85% relative humidity, non-condensing
Light Levels Daylight, 5000Lux
Shock Designed to withstand 1.5M drops
