These Nozzle testers are used to adjust the injector nozzle opening pressure, nozzle seat tightness and to carry out leakage tests, spray pattern atomization repetition tests and chatter characteristic tests.

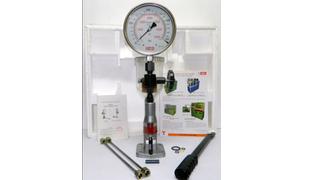

The nozzle tester consists of :-

1. Aluminum Cast Injection pump operated by a hand lever.
2. Semi Transparent fuel container with a 5 micron genuine Bosch filter.
3. Three way shut off valve.
4. Brass Bourdon tube Pressure gauge - 100 mm Dial, 3/8 " BSP thread Dual Scale Gauge:-
   Ranges: 0 - 400 Bar & 0 - 6000 PSI (See image 2 Above)
5. Packaged in export worthy thermocole and corrugated box.
6. Standard accessories:-


   • 1 handle with grip
   • 2 High pressure pipes 'A' and 'B' type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections
   • 2 O-rings- 1 flat ring
7. Fitted with Original Bosch plunger and delivery valve.
