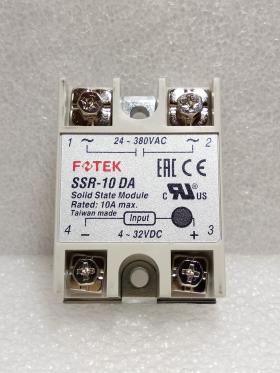

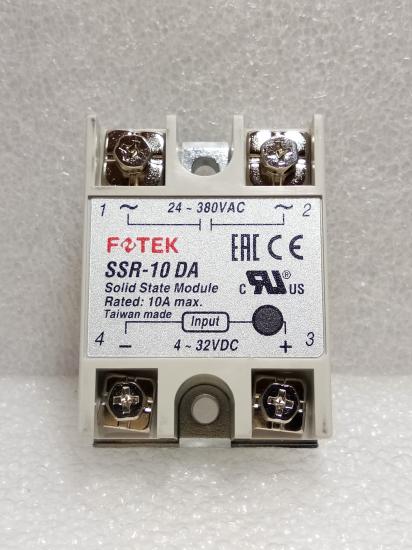

ขาย Fotek Controls SSR Solid State Module

• High Dielectric strength over 4KV


  • High Isolation strength over 100MΩ/500VDC
  • With over heat protection Circuit (120°C)
  • High surge current sustenance
  • High surge voltage sustenance
  • Conformity with EN60947-4-3 and EN60950

Standard Type Single phase DC to AC
Model : SSR-10DA/25DA/40DA/50DA/75DA
High Voltage Type Single phase DC to AC
Model : SSR-10DAH/25DAH/40DAH/50DAH/75DAH

Input voltage : 4-32VDC
Turn off voltage : <3.5VDC
Trigger current : 12.0mA max.
Control method : Zero cross
Leakage current : 5mA max.
Response time : 8.3 ms(60Hz)
Input immunity : 2KV (EN61000-4-4)
Isolation strength : 4 KVrms (EN60950/VDE0805)
Insulation strength : 100MΩ/500VDC (EN60950/VDE0805)
Housing material : ABS (UL:94V0)
Circumstance : -40°C~+80°C ; 35~85%RH
