เครื่องซ่อมเมนบอร์ด PS3, XBOX และบอร์ดอื่นที่มีขนาด PCB ใกล้เคียงกัน
PS3, XBOX motherboard repair tool, LY IR6500, best combination bga welding equipment, suits

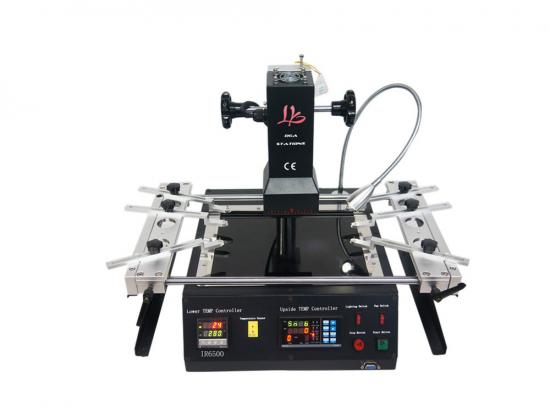

LY IR6500 type BGA soldering Rework Station Shenzhen Liyang Welding Equipment Co., Ltd. developed a dull red outside the BGA rework equipment.
Applies to CBGA, CCGA, CSP, QFN, MLF, PGA, μBGA and all green epoxy and other chip-level welding repair.
Products designed primarily for laptops, desktops, switches, XBOX, PS3 and other game consoles, motherboards and other communications equipment category BGA chip, shield and other repair, welding fields.
Features:
√ machine design with integrated design, rework station more integrated, smaller area occupied table, no messy cables, rework a key control for easier operation.
√ trying to build a split-type BGA rework platform slide bracket. Can be very convenient fixed PCB board, effectively prevent the deformation of PCB board. And more to meet the functional needs.
√ upper heating head can be adjusted by rotating the handle, fixed height. Upper large area can easily rework heating all kinds CPU Block, shielded enclosures, replacement of various components slot.
√ innovative design, effective solution to the ordinary infrared rework station vulnerable to the effects of air flow lead to rise slowly, temperature control.
The maximum temperature of 400 ℃, lead-free solder can easily handle the repair.
√ upper and lower temperature area independent temperature. Contact temperature probe can capture accurate, real-time temperature parameters of BGA heat.
Truly closed-loop control, welding is completed with alarm prompts. And automatically cut off the heating power.
√IR6500 to connect to a computer to control more convenient, built-in PC serial port and a proprietary software attached to it IRsoft.
You can set 8 segment +8 heating temperature control curve, can store 10 groups temperature curve.
√ supplied product manuals, hand-planted the ball, and live video demonstration CD-ROM. Information easy to understand, plus the ease of the platform, even if you have never engaged in BGA rework can quickly master the technology.
√ product warranty of three years, the first year free warranty, the second, three-year parts only charge fees.
Power: 2300W
Voltage: 220V 50 HZ
Weight: 15KG
Gross Weight: 17KG
Size: 475 mm × 480 mm × 420 mm
ติดต่อฝ่ายขาย
087-9009592
081-3189844
088-2740600
088-2740601
088-2740602
088-2740603
Website : http://www.shoppingic.com , http://www.shoppingpc.net
สนใจติดต่อบริษัท ชอปปิ้งพีซี ดอทเน็ต จำกัด
โทร ... 02-933-0022 , 081-318-9844
