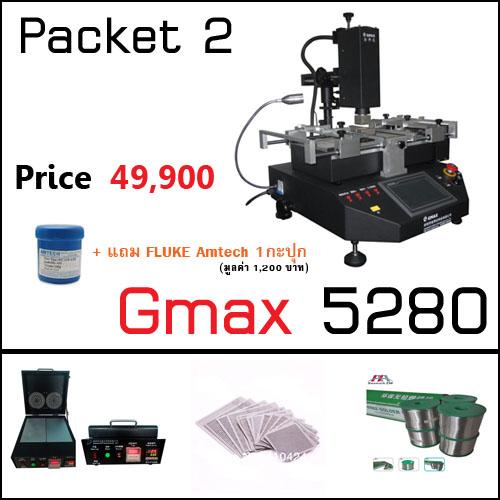

รายละเอียด:
1.เครื่องถอดชิฟ BGA Rework รุ่น Gmax 5280
(ราคา 38,500)
2.เตารีบอล ชิฟ
(ราคา 6,990)
3.ตะกั่ว Lead Free Solder Wire
(ราคา 2,500)
4.แผ่นเพลท (Plate) BGA stencil north and south bridge graphics
(ราคา 3,500)
Fluk Amtech 1 กระปุก
ติดต่อสอบถามโทร
081-3189844 , 02-9330022
BGA Rework Gmax5280
BGA application scope:
The BGA Rework Station is suitable to welding of different BGA chips, including CCGA, BGA, QFN, CSP, LGA, Micro SMD MLF, etc., both lead and lead free
BGA Rework Station RM-5280 technical specifications
Category
Items
Specifications
Temperature controlsystem
The Number of Heater
3 independent heaters, top heater, bottom heater, IR heater
The Power of Heater
Power of top heater: 800W
Power of bottom heater: 800W
Power of IR heater: 2700W
Heating Method
The 1st and 2nd hot-air heaters, no requires an external source of air, the Speed of fan is controlled by software.
Temperaturecontrol algorithm
High-precision K-type thermocouple with close-loop control, PID auto-tuning system temperature system.
Temperaturecontrol accuracy
±1℃
The number of temperature curve
Magnanimity
analysis oftemperature curve
Supportautomatic analysis of the result of temperature curve
The number ofexternaltemperature testinterfaces
2（Extensible）
Size of PCB and BGA
Size of PCB
Max 420X400mm ，Min 10X10mm
Size of BGA
2X2mm—80X80mm
The scheme of clampingPCB
V-groove, PCB support, rapid positioning, convenience, accuracy, can fit for all kinds of PCB.
The Method ofsuck BGA
The build in vacuum pump can automatically suck BGA chip
Control system
Control mode
Color touch screen and intelligent industrial control module
Control interface
Humanized multifunctional operation interface based on Windows
Process control
Intelligent control of the process of welding and desoldering, automatic welding and desoldering
Others
Dimensions
600x600x780mm
Weight
55Kg
Power supply
AC220V±10％ 50/60Hz 4300W
ติดต่อสอบถามโทร
081-3189844 , 02-9330022
