ขาย Elac ELHU-MIRACORD90BL

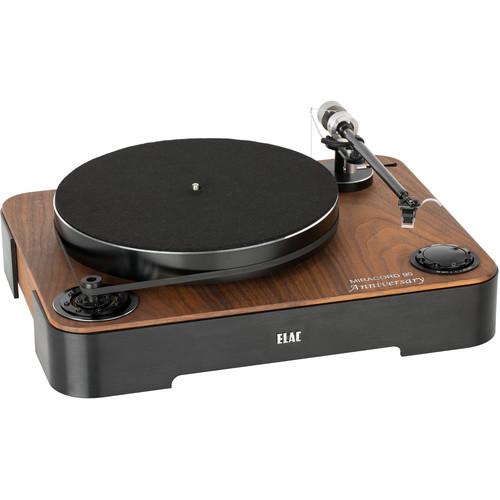

The Miracord 90th Anniversary Manual Turntable from ELAC is engineered to produce clean and smooth hi-fi audio from your vinyl collection. In order to prevent unwanted vibrations and sound from reaching the cartridge, ELAC incorporates heavyweight materials and a design that isolates major components from one another. The tonearm's lightweight carbon fiber design and counterweight help to keep the tracking force low, while an anti-skate feature works to prevent skipping. A built-in dial provides manual adjustment to support both 33 and 45 rpm records, and audio is output via two gold-plated Neutrik RCA connectors.

Turntable
Speeds 33 and 45 rpm
Cartridge Custom moving magnet system
Stylus MicroLine

Tone Arm Carbon fiber
Frequency Response 20 Hz - 25 kHz
Tracking Force 14 +/-4 mN estimates 1.4 +/-0.4 g
DC Resistance 800 Ohms +/-20%
Coil 3.2 kOhms +/- 20% at 1 kHz
Recommended Load 47 kOhms
Output Voltage 2.2 - 4.9 mV
Channel Separation >25 dB
Wow and Flutter 0.05% / 0.05% (peak)
Rumble Max -68.0 dB (silent grove, DIN B wtd)
-68.5 dB (through bearing, DIN B wtd)
Hum & Noise -53.3 dB (unwtd. rel to 5 cm/sec)
Pitch +/-5%
Connectors 2 x gold-plated Neutrik RCA
1 x gold-plated ground connector

General Attributes
Power Supply 18 V, 18 W Lumberg connector
Dimensions (WxHxD) 18.5 x 6.7 x 14.2" / 47.0 x 17.0 x 36.1 cm
Weight 37.7 lb / 17.1 kg
