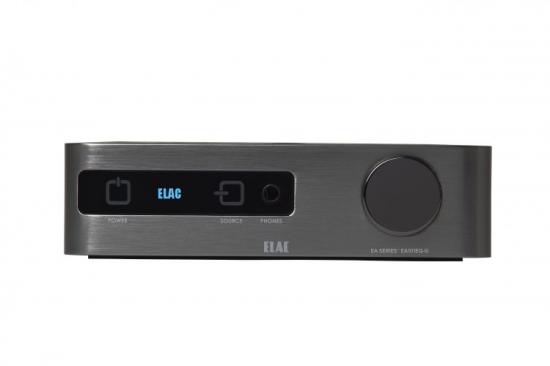

ขาย Elac ELAM-EA101EQ-G EL

80 Watt-per-channel integrated amp with DSP

This integrated amplifier marks ELAC’s return to the amplifier category. The EA Series EA101EQ-G Integrated Amplifier solves two of the biggest problems with two-channel audio: proper blending of a subwoofer with your main speakers and room correction. Our advanced DSP and innovative smartphone application provide all the tools necessary for anyone to achieve a true audiophile system at an affordable price.

The EA101EQ-G makes quite a statement and is guaranteed to change the rules of the game for integrated amplifiers, with sound quality and feature-rich control flexibility that make it the go-to solution for a no-compromise sound system. Once you experience what it can do—especially with the new Debut, Uni-Fi, or Line 240.3 loudspeakers—your world of sound just might be altered forever.

SPECIFICATIONS
Amplifier: BASH Digital Fidelity Tracking Amplifier
Power output Continuous:
2 x 80 Watts 2 channels driven into 4 ohms @ 1kHz
2 x 40 Watts 2 channels driven into 8 ohms @ 1kHz
2 x 70 Watts 2 channels driven into 2 ohms @ 1kHz
Power output burst (CEA 2010*):
120 Watts 1 channel driven into 4 ohms @ 1kHz
65 Watts 1 channel driven into 8 ohms @ 1kHz
170 Watts 1 channel driven into 2 ohms @ 1kHz
Power and THD+N, 1kHz:
4 ohms 70 Watts @ .07%
8 ohms 40 Watts @ .03%
Signal-to-Noise Ratio: (Full Power Digital input): 101dB
Broadband Frequency Response: 20Hz to 40kHz +/- 1.8dB
Analog inputs: 2
Digital inputs: 3 total; 2 optical / 1 coaxial (192kHz 24-bit)
USB input: 192kHz 24-bit asynchronous
Subwoofer Output: 1
Headphone output: 1 (100mW @ 16 ohms)
Bluetooth audio: Yes with aptX
Audio Decoding: Dolby Digital
Display: OEL
App Control: Yes, iOS and Android control app (Android App available now, iOS App will be available mid December). A Bluetooth 4.0 low-energy Android or iOS device is required to use this application.
Room Correction: ABC (Auto Blend & Calibrate)
All specifications subject to change.
Power Consumption:
Power Off 120Vac: .86W
Auto Off 120Vac: 5.45W
