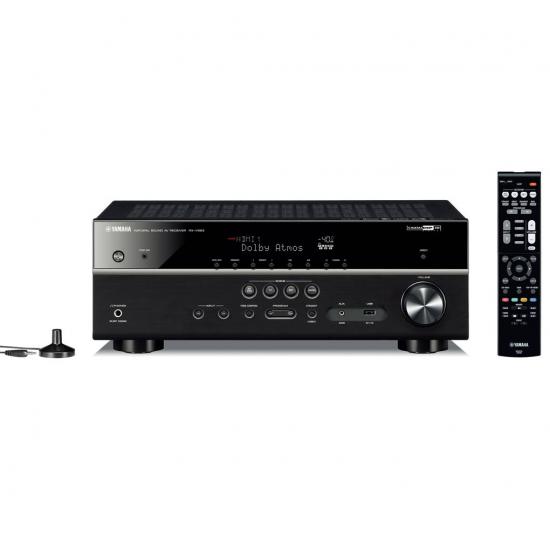

ขาย YAMAHA RX-V583

7.2-channel AV receiver supports advanced surround sound formats to make movies come alive.
• Dolby Atmos® and DTS:X™ support
• MusicCast for audio enjoyment in every room
• 7-channel powerful surround sound
• --- 80 W per channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
• --- 115 W per channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
• --- 145 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
• Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
• Bluetooth® for wireless music streaming and Compressed Music Enhancer for Bluetooth
• AirPlay®, Spotify®, Pandora®, Tidal, Deezer, Qobuz, JUKE music streaming service
• *Music service availability varies by region.
• DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
• Gapless playback compatibility allows play without interruption
• HDMI (4 in / 1 out) with 4K Ultra HD full support, HDR Video including Dolby Vision and Hybrid Log-Gamma, and BT.2020
• Front panel USB Digital Connection for USB thumbdrives
• YPAO™ sound optimisation for automatic speaker setup
• Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
• Dialogue Lift ensures that dialogue comes from the centre of the screen
• Dialogue Level Adjustment for proper sound balance with dialogue and vocals
• Assignable amplifiers for bi-amp connection and Speaker Zone B Function
• Multi-language colour OSD capable of displaying cover art
• ECO mode operation for about 20% less power consumption

MusicCast RX-V583
AV Receiver
Amplifier Section
• Channel 7.2
• Rated Output Power (1kHz, 1ch driven) 115 W (6 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) 80 W (6 ohms, 0.09% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 145 W (6 ohms, 10% THD)
• Dynamic Power per Channel (8/6/4/2 ohms) - / 140 / 170 / 190 W
Surround Sound Processing
• CINEMA DSP Yes (3D)
• DSP Programs 17
• Dialog Level Adjustment Yes
• Virtual Presence Speaker Yes
• Virtual Surround Back Speaker Yes
• Dialogue Lift Yes
• SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
• Dolby Atmos Yes
• Dolby TrueHD Yes
• Dolby Digital Plus Yes
• Dolby Surround Yes
• DTS:X Yes
• DTS-HD Master Audio Yes
Audio Features
• Compressed Music Enhancer Yes (incl. enhancer for Bluetooth®)
• YPAO sound optimization Yes
• Adaptive DRC (Dynamic Range Control) Yes
• Initial Volume & Maximum Volume Setting Yes
• Bi-amp capability Yes
• Audio Delay Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features
• 4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
• HDMI 3D passthrough Yes
• HDMI Audio Return Channel Yes
• HDMI upscaling Yes (HDMI® to HDMI)
• Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity
• HDMI Input/Output 4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
• HDMI CEC Yes
• USB Input USB Memory, Portable Audio Player
• Network Port Yes
• Wi-Fi Yes (with Wireless Direct)
• AirPlay Yes
• Bluetooth Yes (SBC / AAC)
• Front AV Input USB / Mini Jack
• Digital Audio Input/Output: Optical 1 / 0
• Digital Audio Input/Output: Coaxial 2 / 0
• Analog Audio Input/Output 4 (front 1) / 0
• Composite Video Input/Output 3 / 1
• Preout Subwoofer (2 x mono)
• Headphone Output 1
• Tuner Section FM/AM Tuner Yes
• User Interface On-screen display Yes (colour OSD)
• SCENE SCENE (4 sets)
• App Control Yes (iPhone / iPad / Android phone / tablet)
• Remote Control Unit Yes
• Zone Control Zone B Output Yes
• General Standby Power Consumption (IR only) ≤0.1W
• Auto Power Standby Yes
• ECO mode Yes
• Dimensions (W x H x D) 435 x 161 x 327 mm (with antenna: 435 x 225.5 x 327 mm); 17-1/8” x 6-3/8” x 12-7/8” (with antenna: 17-1/8” x 8-7/8” x 12-7/8”)
• Weight 8.1 kg; 17.9 lbs.
