The brand new EVP-R Series has been meticulously designed to offer the very best sound quality in a robust and portable package. EVP-R uses new titanium diaphragm HF compression drivers and low distortion, high power woofers, for accurate, detailed and powerful sound reinforcement and reproduction. High-impact plastic, 4-way carry handles from our flagship loudspeaker lines are now used, making EVP-R an excellent, easy to transport choice for the working live musician or rehearsing band. Dual-angle pole mount receptacles are used throughout the range to ensure that the HF dispersion is perfectly matched to the location of your audience, minimising early reflections from the ceiling. 90˚x60˚ Elliptical Wave Guides are used, for smooth, predictable coverage and continuity when mixing different models. The new low-profile dual angle stage monitors can be positioned at either 40˚ or 55˚ angles to ensure compatibility with all stage situations, ensuring that as a gigging musician you will get the best sound on stage, night after night. The EVP-R stage monitors incorporate a Speakon™ connector on each side to facilitate neat parallel wiring along the widest of stages. We have included a dualangle pole mount receptacle on all stage monitors so they can double up as a neat utility box, either front-of-house or as a stand mounted drum fill.

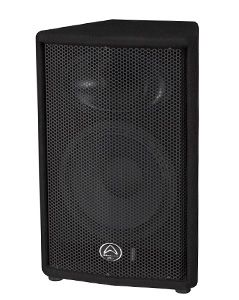

MODEL EVP-R15
SENSITIVITY 98dB
PT LOUDSPEAKER
FREQUENCY RESPONSE (+/- 10DB) 45-20KHZ
FREQUENCY RESPONSE (+/- 3DB) 50-20KHZ
MAX SPL (CALCULATED) 130dB
CROSSOVER FREQUENCY 2.4kHz
POLE MOUNT Dual-angle (0° or -10°) 35 mm pole socket
HANDLES 2 on sides
INPUT CONNECTOR TYPE 2xSpeakon+1/4" Jack
DIMENSIONS (UNPACKED)
(MM) 685 x 446.5/245.3x 432.4
(INCHES) 26.96'' x 17.57''/9.65'' x 17.02''
DIMENSIONS (PACKED)
(MM) 750x 500/300x 485
(INCHES) 29.52’’x19.68’’/11 .81’’x19.09’’
NOMINAL IMPEDANCE (OHMS) 8Ω
CONFIGURATION wo-way
NOMINAL COVERAGE (HXV) 90° x 60°
GROSS WEIGHT (KG / LBS) 24.30kg/ 53.50lbs
NET WEIGHT (KG / LBS) 21.58kg/ 47.50lbs
LF TYPE
SIZE 381/15"
POWER (CONTINUOUS RMS) 350w
SENSITIVITY (FREE FIELD 1W @ 1M) 98dB
LF DRIVER D NUMBER L01-07010187A
HF TYPE
SIZE 1.75" Titanium
POWER (CONTINUOUS RMS) 40W
SENSITIVITY (FREE FIELD 1W @ 1M) 108dB
VOICE COIL 1.75"(44.5mm)
WAVEGUIDE TYPE Elliptical
WAVEGUIDE EXIT 1"
HF DRIVER D NUMBER L01-07010190A
POWER CAPACITY
CONTINUOUS 350W
PROGRAMME 700W
PEAK 1400W
