ขาย FUSION(PP-AM20001) PP-AM20001

ขาย poweramplifier Class D FUSION PP-AM20001

ขาย PP-AM20001 PowerPlant Monoblock Amplifier

แรงสะใจ

Product Information:

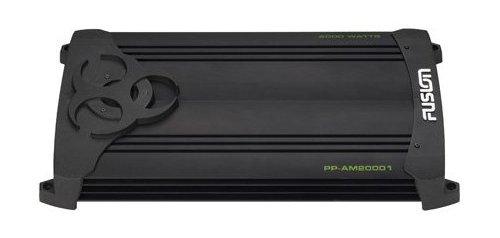

PP-AM20001
PowerPlant Monoblock Amplifier
Superior Thermal Conductivity
PowerPlant amplifiers feature superior thermal conductivity ensuring heat dissipates efficiently
Rugged Amplifier Case
Single piece extrusion with seamlessly matched die-cast end caps which protects connectors and internal components
Over-sized Mounting Feet
The oversized mounting feet with their recessed holes provide secure and discreet fastening points.
Over-Sized Power Connection
Enlarged contact surfaces for high current connectivity
Stage 2 System Management Panel
Multi-function management panel enables you to refine the characteristics of the signal to suit your audio preferences.
Multiple Fuse Protection
Multiple fuses protect internal components and are easily accessible for quick changes in a competitive environment
Product Specifications
465 Watts RMS x 1 Channel @ 4 Ohms and 1% THD+N
750 Watts RMS x 1 Channel @ 2 Ohms and 1% THD+N
1150 Watts RMS x 1 Channel @ 1 Ohms and 1% THD+N

Linked Power Ratings @14.4VDC
1000 Watts RMS x 1 Channel @ 4 Ohms and 1% THD+N
1800 Watts RMS x 1 Channel @ 2 Ohms and 1% THD+N

Max Power Rating: 2000 Watts
Max Current: 100A
Full Rated Power Distortion (Max) 1kHz: 0.45%
THD @ Rated Power 1kHz/100Hz: 0.3%
Frequency Response Hz (-3dB): 10Hz - 250Hz
Signal to Noise: >90
Variable Low Pass Filter: 12 dB/Octave
Bass Boost @ 45Hz: 12dB
Input Sensitivity: 0.2 - 8V
Input Impedance: 47K
Fuse Rating: 25A x 4
