PP-SW10E

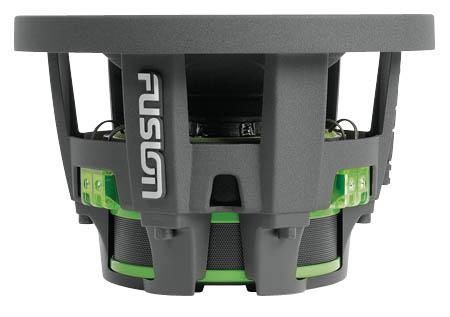

PowerPlant 10" Dual Voice Coil Subwoofer
Recessed Mounting Points
A rigid one piece cast frame integrates recessed mounting points for installation strength
Die-Cast FUSION Torsion Arm Basket
The alloy basket features a FUSION Torsion Arm structure ensuring maximum rigidity to optimize performance
Caged Dual Stack Motor Structure
PowerPlant’s oversized, double stacked motor structure with charged magnets generates intense sound
Press-formed Paper Cone
Extreme strength, press-formed cone for accurate reproduction of low frequency sound
Full Excursion Foam Surround
Allowing full cone travel and movement, offering total control without restriction in the extra low range
8 Gauge Oversized Power Connectors
Providing ease of connection and superior power transfer into the motor structure
Product Specifications
Max Power Rating (Watts): 750
RMS Power Rating (Watts): 250
Coil Height (Hvc): 25
Compliance (Cms): 281.69
Cone Area (Sd): 31.41
D.C. Coil Resistance (Re): 1.81
Electrical Q (Qes): 0.46
Force Factor (Bl): 9
Free Air Resonance (Fs): 31.02
Frequency Response: 25Hz - 500Hz
Gap Height (Hag) (mm): 8
Impedance (Nominal): 2
Inductance (Le) (mH): 0.26
Linear Excurson (Xmax):26
Mechanical Excursion (mm):8.5
Mechanical Q (Qms): 4.5
Moving Mass (Mms): 93.45
Sensitivity (dB) (1W/1M): 86.5
Total Loudspeaker Q (Qts): 0.373
VAS (L): 39.48
VAS (CuFt): 1.39
Magnet Structure (Oz): 152
Total Loudspeaker Displacement (L): 5
ราคา FUSION PP-SW10E PowerPlant 10" Dual Voice Coil Subwoofer.........10,950 บาท
