เครื่องพิมพ์ 3D รุ่น K8400 ยี่ห้อดัง Velleman จากเบลเยี่ยม
รายละเอียด:
เครื่องพิมพ์ 3D รุ่น K8400 ยี่ห้อดัง Velleman จากเบลเยี่ยม

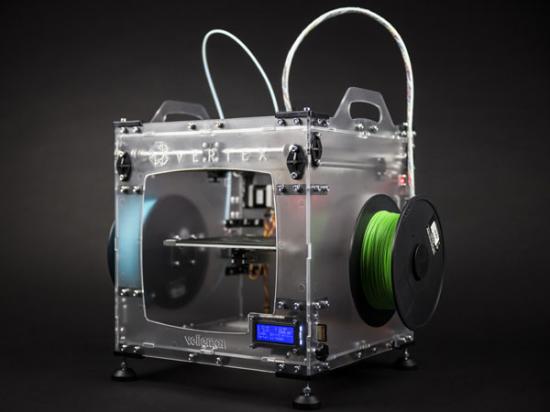

VERTEX 3D PRINTER
The Vertex is the next generation Velleman 3D printer kit.
Easy, accurate, affordable & Open Source.
Specifications
Printing:
print technology: Fused Filament Fabrication (FFF)
layer resolution: standard: 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
build plate: 215 x 240 mm (8.46" x 9.45")
build volume: 180 x 200 x 190 mm (7" x 7.8" x 7.5")
print speed: 30 mm/s - 120 mm/s
travel speed: 30 mm/s - 300 mm/s
build plate surface: Removable layer of BuildTak™
(consumable; also sold separately)
filament diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm).
Open filament policy.
prints: PLA, ABS
Testing with other materials in progress.
nozzle 1&2 diameter: 0.35mm
One nozzle supplied. Second nozzle optional.
distance between nozzles: 23.7 mm
Maximum nozzle operating temperature: 270 °C
Software:
firmware: Modified Open Source Marlin 3D Printer
Firmware - user upgradable
software: Repetier - CuraEngine - Slic3r
(RepRap compatible)
Hardware:
dimensions: X Y Z 360 - 380 - 395 mm
(14" x 15" x 15.5") (without filament spools)
frame: Polycarbonate panels and fibre reinforced molded ABS parts
weight: 10 kg
average noise level during operation: 52 dBA (at 1 m)
ambient operation temperature: max 25 °C
storage temperature: - 10 °C to + 40 °C
Electrical:
communication: USB 2.0 or SD card
controller board: AVR ATmega2560 based
Dual head and heated bed capable
display: 4 x 20 char. blue LCD with white backlight
AC input: 100 - 240 VAC 50-60Hz 150W max.
