เครื่องปั่นเหวี่ยงสาร DM0412

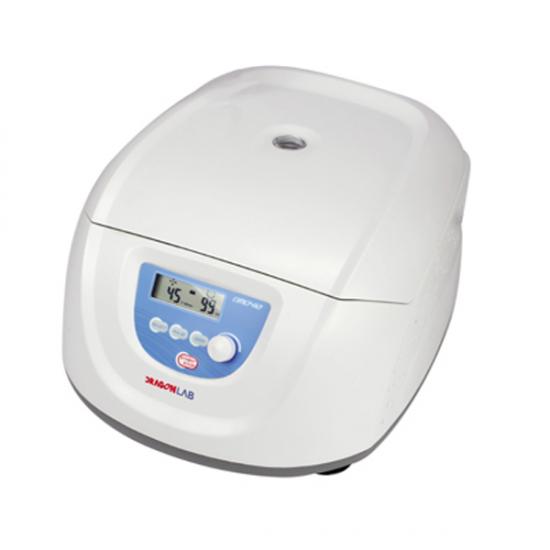

Clinical Centrifuge
Our clinical centrifuge is ideal for the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories.
Features
Speed range of 300-4500rpm
Max rotor capability 15ml×8
Precise control speed and time with efficient separation
For 15ml cell culture tubes and full line of collection tubes, ideal for a clinical lab
Quiet and stable operation with noise level ≤56
Advantages
☆Conforms to international safety standards and regulations
DRAGONLAB clinical centrifuges have passed the explosion-proof test and marked with CE, cTUVus and FCC. MCA test according to IEC/EN61010-2-20 including explosion-proof and bio-safe tests.
Passed EN61010-2-101:2002 particular requirements for in vitro diagnostic (IVD) medical equipment
High strength plastic rotor and excellent balance technology to guarantee a quiet and stable operation
Dual protection casing provides safe and reliable running
Brushless motor drive quickly and effortlessly accelerates the rotor to set speed
☆Precise control
CPU controls all operating parameters including speed and time
High accuracy of speed, excellent performance
Operation can be timed from 30 seconds to 99 minutes or continuous running
Timer commences once the set speed is reached, so the separation time is more accurate
Gentle braking at low speeds with efficient separation
☆Ergonomic design
User-friendly large LCD display show all information
RPM or G-force can be set and displayed
Parameters can be modified after the set speed is reached
Quick spins are possible by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
Automatic release the lid when operation has stopped to save processing time
Easy-to-read processing display and sound alert
Specifications
DM0412
Max. Speed [rpm] 300-4500, increment: 100
Max. RCF [×g] 2490×g, increment: 100×g
Speed Accuracy [rpm] ±20
Rotor Capacity 12×10ml/7ml/5ml;
8×15ml
Run Time 30sec-99min-HOLD (Continuous operation)
Driving Motor Brushless DC motor
Safety Devices Door interlock, Over-speed detector; Over-temperature detector; Automatic internal diagnosis
Power Single-phase,
110V-240V, 50Hz/60Hz, 3A
Noise level [dB] ≤56
Acceleration
/Braking time [Sec] 20s↑20s↓
Dimensions [mm] (L)255 ×(W)245×(H)140
Weight 6 kg
Additional Features Speed/Acceleration switch; Short-time run function; sound-alert function
