เครื่องปั่นเหวี่ยงตะกอน D3024R

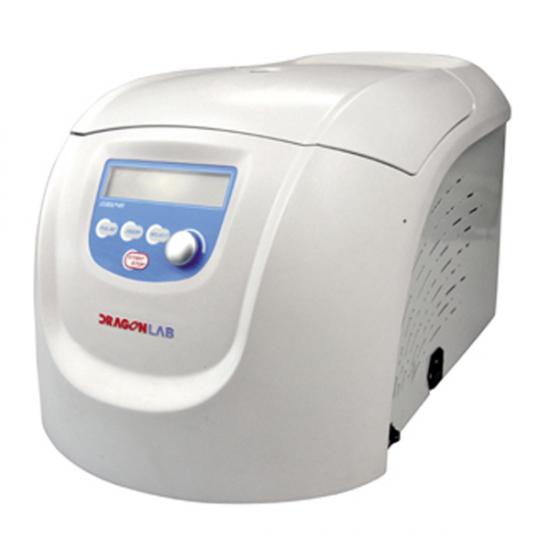

24 Place High Speed Refrigerated Micro Centrifuge
High speed micro-centrifuge range is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications:
Sedimentation of cells and viruses
Separation of sub-cellular organelles
Isolation of macromolecules such as DNA, RNA, proteins or lipids
Advantages
☆ Conforms to international safety standards and regulations
DRAGONLAB is the first Centrifuge manufacturer in China that cooperates with TUV Rheinland Company and its Centrifuges have passed CB scheme by TUV Rheinland China and marked with CE, cTUVus and FCC.
All test items are positive which according to IEC/EN 61010-1 and MCA test according to IEC/EN61010-2-20, including explosion-proof and bio-safe tests.
Quiet and stable operation for the lab
High strength metal casing ensures security of centrifugal process
Dual door interlock design for safety（D3024 & D3024R）
Gentle braking at low speed with efficient separation
☆ Powerful and efficient cooling system
Pre-cooling provides cool down prior to operation and keeps the chamber at the pre-set temperature
Powerful cooling system quickly cools down chamber to 2℃ after only 7 minutes and maintains the samples temperature under 2℃ at maximum speed.
Unique cooling system design minimizes rotor heating to less than 10℃ after running for 1 hour
Sound alert and the lid remains closed after operation to maintain the chamber temperature
Intermittent temperature control mode, CFC-free refrigerant and low carbon life
☆ Rotor capacity
Bio-safe rotor/anti-sample overflow ensures the samples do not leak during the centrifugal process helps prevent microbial contamination
High strength aluminum alloy rotor can be fully autoclaved, with unlimited service life
Four rotors are optional, comes with 24 x 1.5/2.0ml tubes. Smaller 0.2ml and 0.5ml tubes can be used with adapters
☆ Precise control
Brushless DC motor accelerates quickly and effortlessly to the set speed
High accuracy of speed in ±20 rpm
Operation can be timed from 30 seconds to 99 minutes or used in continuous mode
Timer starts once the target speed reached, for accurate separation time
☆ Ergonomic design
User-friendly large LCD display shows running information
Both RPM or G-force can be set and displayed
The parameters can be modified after the set speed is reached.
The short spin function is used for quick spins by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
Easy-to-read display and sound alerts
Specifications
D3024R
Max. Speed [rpm] 15000rpm (200-15000rpm), increment:10rpm
Max. RCF [×g] 21380×g, increment:10×g
Speed Accuracy [rpm] ±20 rpm
Temperature Range -20℃~40℃
Rotor Capacity 5ml×18;
0.2ml/0.5ml/1.5ml/ 2ml×24;
0.5ml×36;
PCR8×4
Run Time 30sec-99min-HOLD (Continuous operation)
Driving Motor Brushless DC motor
Safety Devices Dual door interlock, Over-speed detection; Over-temperature detection; Automatic internal diagnosis
Power Single-phase, AC220V-240V, 50Hz/60Hz, 10A;
AC110V-120V, 50Hz/60Hz, 10A
Noise level [dB] ≤56
Acceleration/ Braking time [Sec] 25s↑25s↓
Dimensions [mm] (L)338×(D)580×(H)324
Weight 30kg
Additional Features Speed/Acceleration switch; Short-time run function; sound-alert function
