เครื่องปั่นเหวี่ยงสารตะกอน D3024

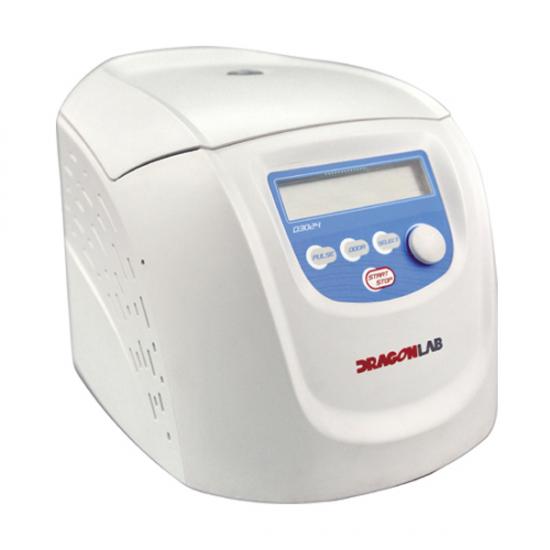

24 Place High Speed Micro Centrifuge
High speed micro-centrifuge range is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications:
Sedimentation of cells and viruses
Separation of sub-cellular organelles
Isolation of macromolecules such as DNA, RNA, proteins or lipids
Advantages
☆ Conforms to international safety standards and regulations
DRAGONLAB is the first Centrifuge manufacturer in China that cooperates with TUV Rheinland Company and its Centrifuges have passed CB scheme by TUV Rheinland China and marked with CE, cTUVus and FCC.
All test items are positive which according to IEC/EN 61010-1 and MCA test according to IEC/EN61010-2-20, including explosion-proof and bio-safe tests.
Quiet and stable operation for the lab
High strength metal casing ensures security of centrifugal process
Dual door interlock design for safety(D3024 & D3024R)
Gentle braking at low speed with efficient separation
☆ Unique Features
Special multi-flow air cooling design(Patent No. 201120322916.0)helps keep lower rotor temperature
Unique temperature display protects sensitive samples
☆ Rotor capacity
Bio-safe rotor/anti-sample overflow ensures the samples do not leak during the centrifugal process helps prevent microbial contamination
High strength aluminum alloy rotor can be fully autoclaved, with unlimited service life
Four rotors are optional, comes with 24 x 1.5/2.0ml tubes. Smaller 0.2ml and 0.5ml tubes can be used with adapters
☆ Precise control
Brushless DC motor accelerates quickly and effortlessly to the set speed
High accuracy of speed in ±20 rpm
Operation can be timed from 30 seconds to 99 minutes or used in continuous mode
Timer starts once the target speed reached, for accurate separation time
☆ Ergonomic design
User-friendly large LCD display shows running information
Both RPM or G-force can be set and displayed
The parameters can be modified after the set speed is reached.
The short spin function is used for quick spins by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
Automatic release of lid when the rotor stops to save processing time (excluding D3024R)
Easy-to-read display and sound alerts
Specifications
D3024
Max. Speed [rpm] 15000rpm (200-15000rpm), increment:10rpm
Max. RCF [×g] 21380×g, increment:10×g
Speed Accuracy [rpm] ±20 rpm
Rotor Capacity 5ml×18;
0.2ml/0.5ml/1.5ml/ 2ml×24;
0.5ml×36;
PCR8×4
Run Time 30sec-99min-HOLD (Continuous operation)
Driving Motor Brushless DC motor
Safety Devices Dual door interlock, Over-speed detection; Over-temperature detection; Automatic internal diagnosis
Power Single-phase, AC220V-240V, 50Hz/60Hz, 5A;
AC110V-120V, 50Hz/60Hz, 8A
Noise level [dB] ≤58
Acceleration
/Braking time [Sec] 25s↑25s↓
Dimensions [mm] (L)280×(D)364×(H)266
Weight 12kg
Additional Features Speed/Acceleration switch; Short-time run function; sound-alert function
