เครื่องกวน สารให้ความร้อน
SHPM-10 (Hot Plate & Magnetic Stirrer) , FINETECH KOREA
HOT PLATE & MAGNETIC STIRRER
Special Features
Heat is equally distributed due to the use of the Panel Heater. → SHPM-10D / SHPM-10
This product encloses both a hot plate and a magnetic stirrer in one body so that heating and stirring can be performed simultaneously or separately with the added features of temperature control and speed control. → SHPM-10D / SHPM-10
The case(body) painting is treated with KARUMEL powder coating so that it withstands peeling due to external impacts and scratches.
The ceramic-coated heat plate withstands long-term exposure to acids and alkali, protecting it against peeling and distortion.
SHPM-10D (Digital, Hot Plate & Magnetic Stirrer)
Heating Function (Hot Plate)
- Control Method : PID(Proportional Integral Differential) Type.
- Consists of a K-type sensor and an accurate temperature can be obtained by using proportinal control output(PID 4~20mA).
- Temperature Accuracy : Within±1%(based on experiment on liquid).
(The range of error can be widened according to experiment environments in case of
experimenting on solid.
Based on the user’s need, before using, the temperature should be controlled by using a separate thermometer.)
- Heater Capacity : 550 Wattage
- Digital Display(LED).
Stirring Function(Magnetic Stirrer)
- Control Method : Feedback type.
- Due to the use of a feedback-type speed control system, there is no rpm change according to load change.
- Speed Accuracy : ±0.2%
- The high-efficiency built-in DC motor and feedback speed controller support a powerful motor output and flexible control from 50 to 1200rpm.
- This DC motor supports a stable speed at the start speed (low speed) and low heat emission.
- These DC motor and powerful magnet prevent breakaway of the stir bar even at high speed.
- Digital Display(LED).

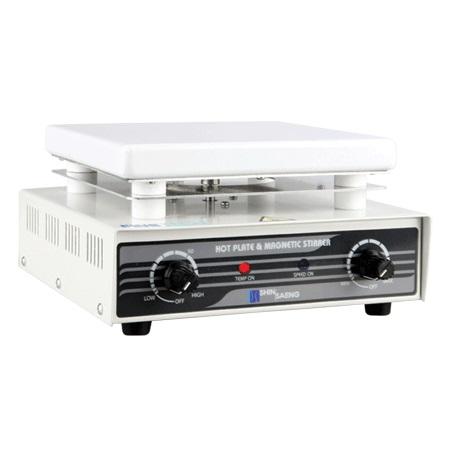

SHPM-10 (Hot Plate & Magnetic Stirrer)
Heating Function (Hot Plate)
- The temperature can be effectively controlled from low to high temperarures as a PVC(proportional voltage control) type controller is built in
(Based on the user’s need, before using, the temperature should be controlled by using a separate thermometer.
What is the Proportional Voltage Control?
This is a method where constant and steadystate voltage is supplied to each load according to different dial settings.)
- Heater Capacity : 550 Wattage
Stirring Function.(Magnetic Stirrer)
- You can adjust the speed from 50 to 1700 rpm with the help of the high-efficiency DC motor and speed controller (Stepless electronic control type) which are built in.
- This DC motor supports a stable speed at the start speed(low speed) and low heat emission.
- These Dc motor and powerful magnet prevent breakaway of the stirbar even at high speed.
Technical Data
Model
SHPM-10D / 10
Case Construction
Stainless steel and Aluminum, with chemically resistance powder coating.
Plate Size
7.08” x 7.08” (180 x 180mm)
Elment Temperature
Up to 320℃ Maximum(SHPM-10D,
SHPM-10, SM-10) → Surface temperature of heating plate
Supply Voltage & Frequency
AC 110~120V (or 220~230V), 50/60Hz
Product’s Type & Model Number
Model
SHPM-10D
SHPM-10
Control Method
Heater : Digital P.I.D.control
Heater : Proportional Voltage Control
Motor : Feedback Control
Thermo Couple : “K”(CA)type
Motor : Stepless Electronic Control
Temperature/Speed Digital Display
Heater Capacity
550 WATTAGE
Motor Type
DC24V
RPM : 100∼1,200
DC24V
RPM : 100∼1,700
Power Supply
115V or 230V / 50/60Hz
※Specifications are subject to change for improvement in the quality of our products.
