The 480846 RF electromagnetic field strength tester is used to monitor high frequency electromagnetic radiation.

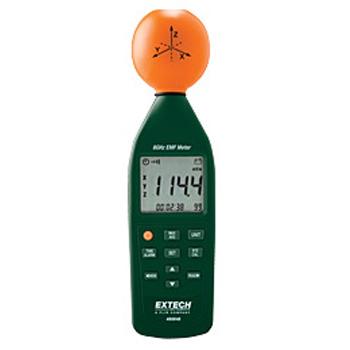

480846: 8GHz RF Electromagnetic Field Strength Meter

Monitors high frequency radiation in the 10MHz to 8GHz frequency range

Features:

For electromagnetic field strength measurement including:
    Mobile phone base station antenna radiation
    RF power measurement for transmitters
    Wireless LAN (Wi-Fi) detection/installation
    Wireless communication applications (CW, TDMA, GSM, DECT)
    Microwave leakage
Measurement optimized for 900MHz, 1800MHz, 2.7GHz, 3.5GHz and 8GHz
Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe
Max Hold and Average functions and level exceed audible alarm with user selectable threshold
Manual store/recall up to 99 sets
Complete with 9V battery and carrying case

Specifications:
Sensor Type Electric Field
Frequency Range 10MHz to 8GHz
Units of Measure mV/m, V/m, μA/m, mA/m, μW/m², mW/m², W/m², μW/cm², mW/cm²
Measuring Ranges 20mV/m to 108.0V/m
53μA/m to 286.4mA/m
1μW/m² to 30.93W/m²
0μW/cm² to 3.093mW/cm²
Resolution 0.1mV/m, 0.1μA/m, 0.1μW/m², 0.001μW/cm²
Audible Alarm Adjustable threshold with On/Off
Memory Manual store/recall of 99 sets
Dimensions 2.6x2.4x9.7" (67x60x247xmm)
Weight 8.8oz (250g)
