ขาย HW Sensor BX616

BX616 Multi Gas Detector เครื่องวัดชนิดหลายแก๊ส CO,O2,LEL,H2S เครื่องวัดแก๊ส Gas sensor type: catalytic (for combustible gas) and electrochemical (for H2S, CO and O2)

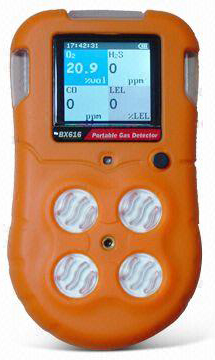

BX616 Multi Gas Detector

เครื่องวัดชนิดหลายแก๊ส CO,O2,LEL,H2S เครื่องวัดแก๊ส

Features:

• Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability
• 32-bit built-in MCU, high reliability and self-adaptation ability
• Full functions, easy operation
• CSTN colorful LCD, more intuitionistic, abundant and clear indication
• Compact design, easy carrying
• High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof

Application:

• Oil&Gas, Steel refinery Industry
• Coal Mine
• Communication, Chemical
• Underground Coal Mine, Pipeline, and Explosive area

Specification:

• Range:
_ CO: 0-1000 ppm
_ O2: 0-30% VOL
_ H2S: 0-100 ppm
_ LEL: 0-100%
• Alarm Points:
_ CO: 35 and 200 ppm instant, TWA: 35 ppm STEL: 200 ppm
_ H2S: 10 and 15 ppm instant, TWA: 10 ppm STEL: 15 ppm
_ O2: 19.5% by Vol decreasing and 23.5% by Vol increasing
_ LEL: 20 and 50% LEL
• Method of Detection: Diffusion or External pump sampling(optional)
• Sensors: CO, H2S and O2 Electrochemical
• Display: Color quadrant LCD
• Temperature Range: -20℃ to +50℃
• Humidity Range: 5 to 95% RH, non-condensing
• Power: 3.6 VDC Lithium battery, rechargeable
• Operating Time: Approximately 6 hours
• Weight: 200g
• Dimensions: 66 x 116 x 31mm
• Ingress Protection: IP65
• Explosion-proof Rating: Exia II CT4
