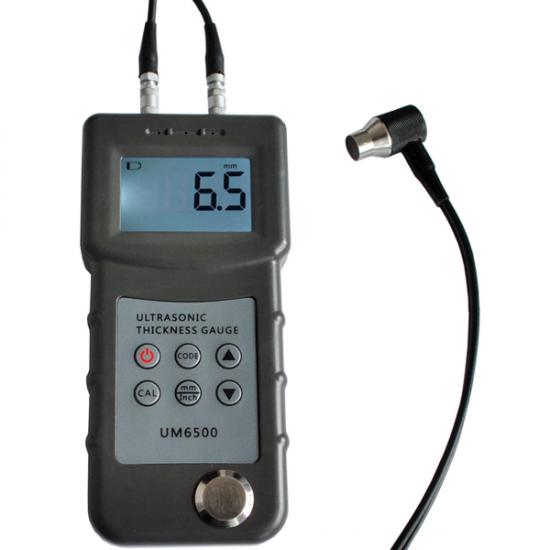

เครื่องวัดความหนา UM6500
Ultrasonic Thickness Gauge
Application
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron
High resolution measurement
Probe automatic zero calibration for system error correction
Capture the value of the minimum thickness.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.
Humanized shape design,compact and portable,Can be used in harsh environment.
Specifications
Display:4.5 digits LCD with EL backlight.
Operating principle: ULTROSONIC
Measuring range (metric/imperial): 1.0-200mm,0.05-8inch (in Steel).
Resolution: 0.1mm;
Accuracy: ±(0.5%H+0.1)mm, depends on materials and conditions
Units: Metric/Imperial unit selectable.
Power supply:4x1.5 AAA size (UM-4) battery 1
Battery indicator: low battery indicator
Operating conditions:0-+45°C(32F-104F),≤90%RH
Dimensions: Main Unit 140mm×60mm×22mm
Gloss Weight :1KG
Standard Delivery: Main Unit,8mm Probe, Coupling Oil, User Manual ,Carrying Case
