Ultrasonic Thickness Gauge
Advanced Model TT3 Series
Features:
Advanced handheld ultrasonic thickness gauge
Suitable for most metallic and non-metallic materials ultrasonic can go through
Auto-calibration of zero point, correction of system error
Display current thickness or minimum thickness (menu selectable)
Upper-lower limits setting and sound alarm
Memory of 500 stored values
Two point calibration for high accuracy
Display resolution 0.1mm/0.01mm selectable
Display in mm or inch
Large LCD display with adjustable backlight
Low battery indicator

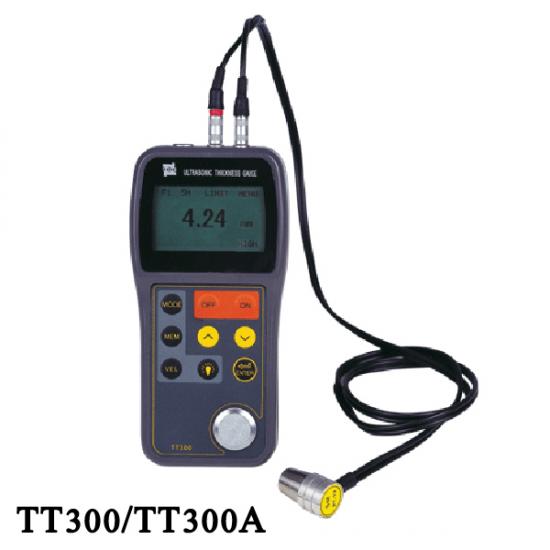

TT300: Equipped with RS232 interface for communication with printer and PC with optional software. 5P Ф10 transducer for normal purpose and optional TSTU32 transducer for casting iron.
TT300A: can be used with high frequency transducer for thickness testing of thin work piece, and auto-calibration is availabel
TT310: Economical model with easy operation
TT320: high-temperature model with range up to 300 ℃
TT340: equipped with TSTU32 transducer for casting iron
Specifications:
TT300
TT300A
TT310
TT320
TT340
Measuring range
1.2mm-225.0mm (steel)
0.75mm-225.0mm (steel)
1.2mm-225.0mm (steel)
1.2mm-225.0mm (steel)
5.0mm-80.0mm (steel high-temp)
1.2mm-225.0mm (steel)
5.0mm-40.0mm (casting iron)
Tolerance
±1% H +0.1mm
±0.5% H +0.01mm
±1% H +0.1mm (H means the thickness of tested piece)
Lower limits of steel pipes
φ20mm x 3.0mm
φ20mm x 3.0mm
φ15mm x 2.0mm
φ20mm x 3.0mm
Display resolution
- 1mm/0.01mm or 0.01/0.001inch
- 1mmor 0.01inch
Data output
RS232 Output for printer or pc
Sound velocity
1000m/s~9999m/s
Power supply
2pcs AA batteries (2pcs) 1.5V
Battery life
100 hours without backlight
Sound speed
1000m/s~9999m/s
Unit scales
mm/inch
Dimensions
152mm×74mm×35mm
Weight
370g
250g
370g
Surface temperature
-10℃~ +60℃
-10℃~ +300℃
-10℃~ +60℃
Dimensions
152mm×74mm×35mm
Standard delivery:
Main unit
Transducer 5PΦ10
Transducer ZW5P for TT320
Transducer TSTU32 for TT340
Leather jacket
Couplant
Batteries AA 1.5V
Screwdriver
Instruction manual
TIME certificate
Warranty card
