ขาย ETI ETI 222-055

Ref 0.01 thermometer with probe , certificate of calibration. Product by UK.

Reference thermometer calibration thermometer
certificate of calibration. Product by UK.

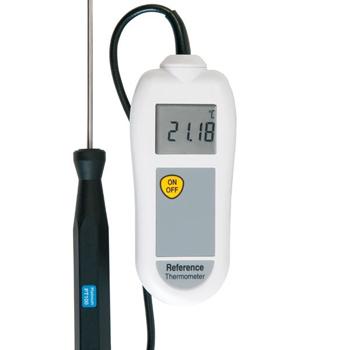

Reference Thermometers The Reference thermometers are high accuracy PT100 instruments that are supplied with a 5-point UKAS Certificate of Calibration. Each certificate indicates deviations from standards at various check points: -18, 0, 40, 70 and 100 °C. Special ranges may be certified by arrangement with the ETI UKAS calibration laboratory.

The Reference thermometers are ideal for comparison checking the calibration and accuracy of other thermometers and probes, when used in conjunction with a stable temperature heat or chill source, see pages 81 and 85. The instruments measure temperature over the range of -199.99 to 199.99 °C witha resolution of 0.01 °C and an accuracy of ±0.05 °C.

The units feature a simple on/off push button with open circuit 'Err' and low battery indication, when applicable. The Reference Plus thermometer incorporates the additional features of a max/min and hold function.

The Reference thermometers are supplied with a permanently attached, high accuracy probe incorporating a 1/10th DIN PT100 sensor. The probe measures Ø3.3 x 130 mm and is supplied with a one metre PVC lead.

specification

reference & reference plus thermometers

range

-199.9 to 199.9°C

resolution

0.01°C

accuracy

±0.05°C (-30 t0 150°C) otherwise ±0.1°C

battery

3 x 1.5 volt AAA

battery life

2000 hours

sensor type

PT100 1/10th DIN

display

10mm LCD

dimensions

25 x 56 x 128mm

weight

210 grams
