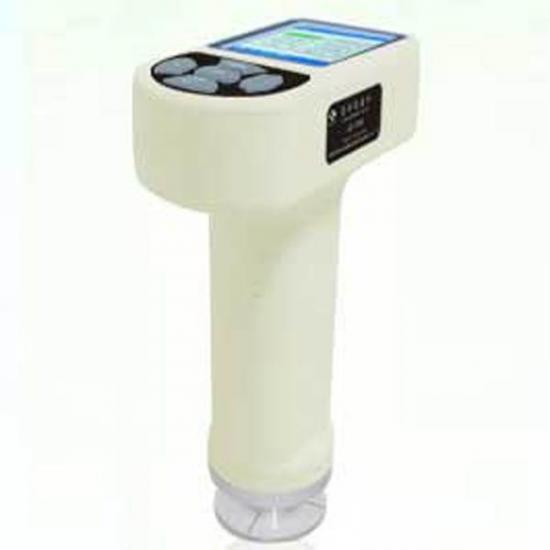

เครื่องวัดสี AMT506
Colorimeter (Color Difference Meter)
Features:
1. Three languages to switch, buttons and menus operation are easy to control
2. A variety of light and color space modes meet special needs of different measurement conditions
3. Two calibrations: white calibration and zero calibration, the measurement data are more accurate and stable
4. 1500 sets of data storage space, can check, callout, upload the data at any time
5. Professional color quality software would assist the color analysis and quality control
Application:
1. Color matching in injection and quality control in production process
2. Color-difference detection and color-difference batch control in printing process
3. Color-difference analysis of spray paint surface and electroplate surface
4. Color-difference of different areas of the metal treating surface
5. Quality control in color difference in sample and the product
6. Color difference inspection of batch products in outdoors
7. On-line monitoring of color difference in production process
Specifications:
1. Illuminant/light system: 45/0
2. Measuring aperture: Ø8mm
3. Operating language: Simplified Chinese, Traditional Chinese, English
4. Display mode: Lab, LCH, XYZ, △Eab, (Lab), (LCH), XYZ
5. Storage space: Standard: 50 sets, 30 sets color difference data under a standard data
6. Standard illuminant: D65, D50, F11, C
7. Standard observer: 10, 2°
8. Calibration: White calibration, Zero calibration
9. Repeatability: Standard deviation: within△Eab≤0.08(When the white calibration plates measured 30 times, and then averaged)
10. Response Time: About 2 seconds
11. Power source: 4 AA-size batteries or AC adapter
12. Operating temperature: 0- 40℃, (32 -104℉); Relative humidity 85% or less
13. Size (WxHxD): 11060190mm
14. Weight: 330g(Without batteries)
15. Standard Accessories: Bag, Protection cap, Software, AC adapter, USB cable, Instrument, Hard case, Calibration plate
16. Optional accessory: Micro-printer
