เครื่องวัดความดันลม FLUKE 922

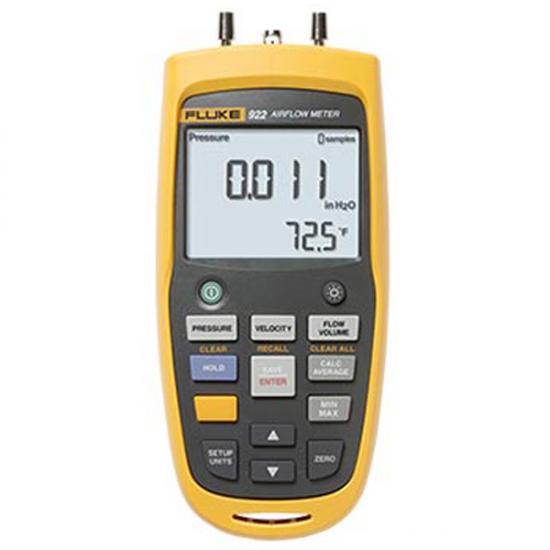

Fluke 922 Airflow Meter/Kit
Features:
Fluke 922 was designed and built for how (and where) you do your job, with performance, ruggedness and ease of use, setting the Fluke 922 apart from the competition. The bright white display and ruggedized holster and wrist strap let you take the Fluke 922 into less than ideal environments. The color-coded hoses help you keep track of where your readings are coming from. The simple, intuitive interface means you can measure pressure, velocity, or airflow at the push of a button. The Fluke 922 helps you analyze airflow. Easily.
Powerful meter provides differential and static pressure, air velocity and flow readings
Convenient colored hoses help proper interpretation of pressure readings
Easy to use without sacrificing performance
Bright, backlit display for clear viewing in all environments
User-defined duct shape and size for maximum airflow accuracy
Resolution down to 0.001 in H2O
99 point data storage capacity
Min/Max/Average/Hold functions for easy data analysis
Auto power off saves battery life
Technical Specifications
Air pressure Range / Resolution / Accuracy ± 4000 Pascals / 1 Pascal / ± 1 % + 1 Pascal
± 16 in H2O/ 0.001 in H2O/± 1 % + 0.01 in H2O
± 400 mm H2O/ 0.1 mm H2O / ± 1 % + 0.1 mm H2O
± 40 mbar /0.01 mbar / ± 1 % + 0.01 mbar
± 0.6 PSI / 0.0001 PSI /± 1 % + 0.0001 PSI
Air velocity Range / Resolution / Accuracy 250 to 16,000 fpm / 1 fpm / ± 2.5 % of reading at 2000 fpm (10.00 m/s)
1 to 80 m/s / 0.001 m/s / ± 2.5 % of reading at 2000 fpm (10.00 m/s)
Air flow (volume) Range / Resolution / Accuracy 0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size
0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size
0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct size
Temperature Range / Resolution / Accuracy 0 °C to 50 °C / ± 1 % + 2 °C / 0.1 °C
32 °F to 122 °F / ± 1 % + 4 °F / 0.1 °F
General Specifications
Operating temperature 0 °C to +50 °C (+32 °F to +122 °F)
Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
Relative humidity 0% to 90%, non-condensing
IP rating IP40
Operating altitude 2000 m
Storage altitude 12000 m
EMI, RFI, EMC Meets requirements for EN61326-1
Vibration MIL-PREF-28800F, Class 3
Max pressure at each port 10 PSI
Data storage capacity 99 readings
Warranty 2 years
Power, battery life Four AA batteries
Battery life 280 hours without backlight, 60 hours with backlight
