ขาย KIMO CP50

เซ็นเซอร์วัดความดันลม > Pressure Sensor เซนเซอร์วัดความดันลม > Differential Pressure Meter Manometer Differential pressure transmitter model CP50

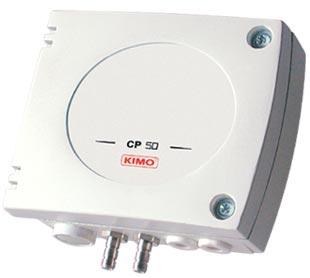

Differential pressure transmitter

Model CP50

Differential pressure transmitter model CP50. Configurable range from -500 to +1000 mmH2O (minimum configurable range: 0 to ± 100 mmH2O). 4-20 mA and 0-10 V output with 24 Vdc/Vac power supply (3-4 wires). ABS IP65 housing. Optional: LCC-100 configuration software.

Measuring range : from 0/+1000 Pa to -5000/+10 000 Pa
Configurable intermediary and central zero ranges
Housing ABS - IP 65 protection
Software or DIP switch configuration
Autozero manual with push-button
Mounting with the 1/4 turn system with wall-mount plate

• Unit of measurement : Pa, mmH2O, mBar, InWg and mmHg
• Output / Power supply : active sensor 0-10 V or 4-20 mA (power supply 24 Vac/Vdc ±10%), 3-4 wires
• Connections : barbed fittings Ø 6,2 mm
