ขาย KIMO CP100

เซ็นเซอร์วัดความดันลม > Pressure Sensor เซ็นเซอร์วัดความดันลม > Differential pressure transmitter CP100

Pressure Sensor เครื่องวัดความดัน

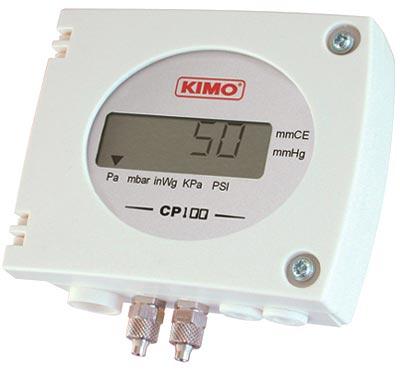

Differential pressure transmitter CP100

Measuring range : from 0/+100 Pa to -1000/+2000 mBar
Configurable intermediary and central zero ranges
Housing : ABS - IP 65
Display : with or without 5-digits LCD
Software or DIP switch configuration
Autozero manual with push-button
Mounting with the 1/4 turn system with wall-mount plate

********* เลือกรุ่น ตามช่วงความดันนะค่ะ

CP101

• Measuring range : -500/+1000 Pa
• Unit of measurement : Pa, mmH2O, mBar, InWg et mmHg
• Barbed fittings Ø 6,2 mm
• Output / Power supply :
- Active sensor 0-10 V or 4-20 mA (power supply 24 Vac/Vdc ±10%), 3-4 wires
- Passive loop 4-20 mA (power supply 18/30 Vdc), 2 wires

CP102
• Measuring range : -500/+1000 mmH2O
• Unit of measurement : Pa, mmH2O, mBar, InWg et mmHg
• Barbed fittings Ø 6,2 mm
• Output / Power supply :
- Active sensor 0-10 V or 4-20 mA (power supply 24 Vac/Vdc ±10%), 3-4 wires
- Passive loop 4-20 mA (power supply 18/30 Vdc), 2 wires

CP103
• Measuring range : -250/+500 mBar
• Unit of measurement : mBar, InWg, mmHg, KPa et PSI
• Compression fittings Ø 4 x 6 mm
• Output / Power supply :
- Active sensor 0-10 V or 4-20 mA (power supply 24 Vac/Vdc ±10%), 3-4 wires
- Passive loop 4-20 mA (power supply 18/30 Vdc), 2 wires

CP104
• Measuring range : -1000/+2000 mBar
• Unit of measurement : mBar, InWg, mmHg, KPa et PSI
• Compression fittings Ø 4 x 6 mm
• Output / Power supply :
- Active sensor 0-10 V or 4-20 mA (power supply 24 Vac/Vdc ±10%), 3-4 wires
- Passive loop 4-20 mA (power supply 18/30 Vdc), 2 wires
