ขาย Extech SD750

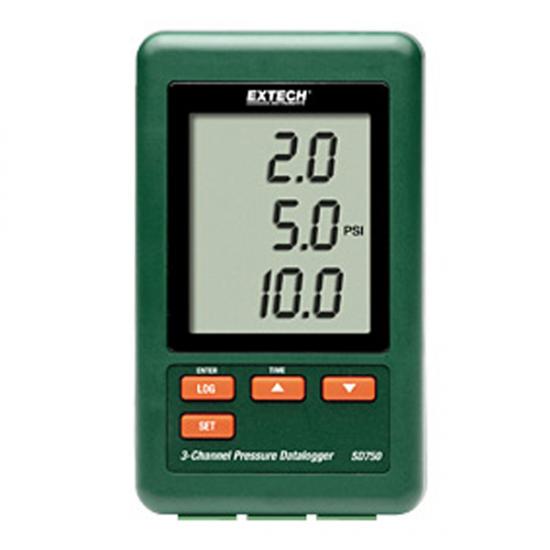

เครื่องวัดความดันลม เครื่องวัดความดันต่าง 3-Channel Pressure Datalogger SD750

SD750

3-Channel Pressure Datalogger

Records data to SD card in Excel® format.

Features:

Triple LCD simultaneously displays 3 pressure channels
Up to 5000psi with 4-20mA output
4-20mA input with readout in 9 units of measure
Datalogger date/time stamps and stores readings on an SD card in Excel® format
User-selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or auto
Complete with six AAA batteries, 2G SD card, universal AC adaptor, three connectors, and mounting bracket
Transducers sold separately

Specifications:

30psi

bar: 0.002 to 2 bar
psi: 0.02 to 30 psi
kg/cm2: 0.002 to 2.040 kg/cm2
mmHg: 2 to 1500 mmHg
inHg: 0.05 to 59.05 inHg
mH2O: 0.02 to 20.40 mH2O
inH2O: 1 to 802 inH2O
atm: 0.002 to 1.974 atm
kPa: 0.2 to 200.0 kPa

150psi

bar: 0.01 to 10 bar
psi: 0.2 to 150 psi
kg/cm2: 0.01 to 10.19 kg/cm2
mmHg: 10 to 7500 mmHg
inHg: 0.2 to 295.2 inHg
mH2O: 0.1 to 101.9 mH2O
inH2O: 5 to 4010 inH2O
atm: 0.01 to 9.87 atm
kPa: 1 to 1000 kPa

300psi

bar: 0.02 to 20 bar
psi: 0.2 to 300 psi
kg/cm2: 0.02 to 20.40 kg/cm2
mmHg: 20 to 15000 mmHg
inHg: 0.5 to 590.5 inHg
mH2O: 0.2 to 204.0 mH2O
inH2O: 10 to 8020 inH2O
atm: 0.02 to 19.74 atm
kPa: 2 to 2000 kPa

Memory: 2M data using 2G SD memory card

Dimensions/weight: 5.2 x 3.1 x 1.3" (132 x 80 x 32mm)/ 7oz (199g)
