ขาย Testo TESTO 327-1

เครื่องวัดการเผาไหม้ > flue gas analyzer เครื่องวัดการเผาไหม้ > เครื่องวัดการเผาไหม้ testo 327-1 flue gas analyzer, incl. rech. battery and calibration protocol; measures O2, CO, hPa, °C

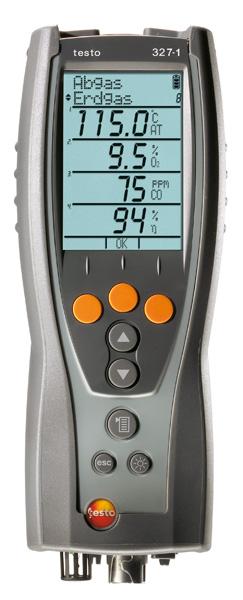

Testo 327-1

Flue gas analyzer, incl. rech. battery and calibration protocol; measures O2, CO, hPa, °C

testo 327-1 is your introductory instrument to flue gas analysis. It measures combustion efficiency, °C, O2, CO2, CO and flue draught. The strong LED background light in the 4 line display guarantees an easy-to-read display even if lighting conditions are unfavourable. The analyser stands out on account of its easy menu navigation and ergonomic housing as well as its durability.

Easy menu navigation
4 line segment display
LED display light
Easy IR printout
Built-in condensate trap
TÜV By RgG 253 acc. to
1. BImSchV
EN 50379 Part 2 for O2, °C, hPa
EN 50379 Part 3 for CO
Small Li-ion rechargeable battery (1200 mA, lifetime of 5 h) can be recharged inside or outside instrument
Fast probe connection using single probe plug
Ambient CO measurement using flue gas probe
O2 dual wall measurement (can be stored)
Separate AT temperature measurement
Undiluted CO measurement (can be stored)
Draught measurement
6-8 fuels (country-specific (e.g. UK=6))
IP 40

Storage temperature -20 to +50 °C
Operating temperature -5 to +45 °C
Battery life > 5 h
Weight Approx. 500 g
Dimensions 216 x 68 x 47 mm

Probe type Type K
Meas. Range -40 to +600 °C
Accuracy ±0,5 °C (0.0 to +99.9 °C)
±0,5 % of mv (100 to +600 °C)
Resolution 0.1 °C
Probe type Draught measurement
Meas. Range ±40 hPa
Accuracy ±0.02 hPa (-0.50 to +0.60 hPa)
±0.03 hPa (+0.61 to +3.00 hPa)
±1.5% of mv (+3.01 to +40 hPa)
Probe type Exhaust gas loss measurement
Meas. Range 0 to 99.9%
Resolution 0.1 %
Probe type Electrochemical measurement CO
Meas. Range 0 to 4000 ppm
Accuracy ±20 ppm (0 to 400 ppm)
±5% of mv (401 to 1000 ppm)
±10% of mv (1001 to 4000 ppm)
Resolution 1 ppm
Probe type Electrochemical measurement O2
Meas. Range 0 to 21 Vol. %
Accuracy ±0.2 Vol. %
Resolution 0.1 Vol. %
Probe type Efficiency Measurement (Eta)
Meas. Range 0 to 120%
Resolution 0.1%
Probe type CO2-determination
Meas. Range 0 to CO2 max
Accuracy ±0.2 Vol. %
Reaction time t90 Approx. 40 s
