ขาย Testo TESTO 310

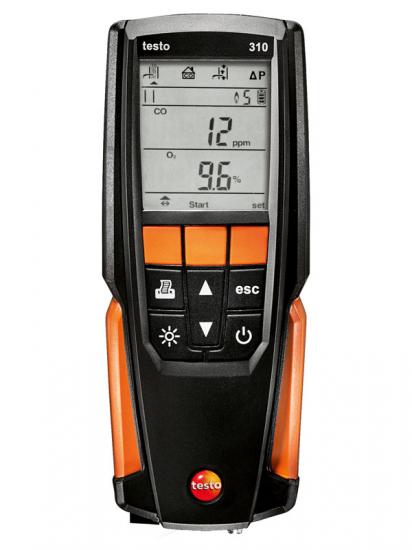

The testo 310 residential combustion analyzer represents a new class of instruments for Testo and provides exceptional value and expanded capabilities in combustion testing.

testo 310 เครื่องวัดประสิทธิภาพการเผาไหม้

The testo 310 residential combustion analyzer represents a new class of instruments for Testo and provides exceptional value and expanded capabilities in combustion testing. The 310 sets a new standard in reliable combustion tuning with its rugged housing, simple design and advanced sensor technology.

Fully featured :

for better testing and tuning.
• O2, CO (w/ NOx fi lters standard), CO2
• Draft & Pressure
• Temperature (fl ue & ambient)
• Combustion effi ciency & excess air
• Undiluted CO (CO air free)
• Ambient CO

Rugged by design
The testo 310 can stand up to the toughest job site.
30 seconds to start
Start testing faster - in only 30 seconds.
O2 and CO measurement
Powerful magnets
Powerful magnets on the 310’s housing allows for hands-free operation.

Technical Data:
Display The fully featured testo 310 delivers more combustion
parameters so you can get it right the fi rst time - every time.
Whether you need to perform basic combustion tuning,
maintenance or safety checks, or install a new furnace or
boiler the fully featured testo 310 delivers results.
Probe type Type K
Response time < 50 sec.
Probe type CO
Meas. Range 0 to 4000 ppm
Accuracy ±20 ppm (0 to 400 ppm)
±1.5% of rdg. (401 to 2000 ppm)
±10% of rdg. (2001 to 4000 ppm)
Resolution 1 ppm
Response time 60 sec.
Probe type Draught measurement
Meas. Range -20 to +20 inH2O
Accuracy ±0.03 inH2O (-3.00 to +3.00 inH2O)
±1.5% of rdg. (remaining range)
Probe type Exhaust gas loss measurement
Meas. Range 0 to 99.9%
Resolution 0.1%
Probe type Electrochemical measurement O2
Meas. Range 0 to 21 Vol. %
Accuracy ±0.2 Vol. %
Resolution 0.1 Vol. %
Probe type Efficiency Measurement (Eta)
Meas. Range 0 to 120%
Resolution 0.1%
Probe type Typ J (FeCuNi)
Reaction time < 50 sec.
