Bottle Lid Torque Meter Tester with Printer ANL-P5:Digital bottle lid torque meter is an intelligent multifunctional measuring instrument which is designed for testing various kinds of bottle lid torque.

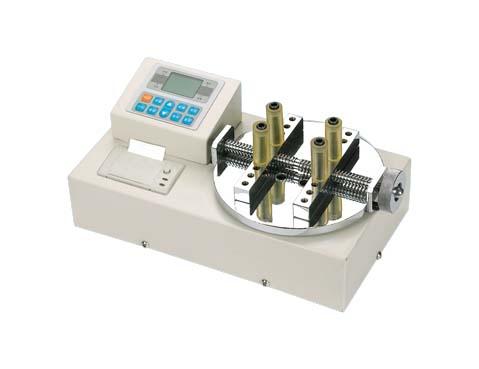

Bottle Lid Torque Meter Tester with Printer ANL-P5

Product Description
Function:

Digital bottle lid torque meter is an intelligent multifunctional measuring instrument which is

designed for testing various kinds of bottle lid torque.

It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used

in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Main features:

1. High precision, high resolution, quick sampling speed, full-screen display.
2. Adopting high precision torque sensor, with torque direction display.
3. Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4. Three units can be switched each other (N·m,kgf·cm,Ib·in).
5. Real-time, peak, automatic peak three models of optional switch.
6. Use USB interface and PC communications, synchronous test function can connect to the computer,

computer synchronous display test force graph and the detailed test process, can save,

print, doing all sorts of analysis.

1. Peak holding, remove automatically function, remove time to set freely.
2. Large storage, can save 99 groups of test data.
3. Without automatic shutdown function, time can be set freely.
   Parameter:

Type

Index

With printer

ANL-P1

ANL-P2

ANL-P3

ANL-P5

ANL-P10

ANL-P20

No printer

ANL-WP1

ANL-WP2

ANL-WP3

ANL-WP5

ANL-WP10

ANL-WP20

Measuring range / Division value

N·m

1.0000/0.0001

2.0000/0.0001

3.0000/

0.0001

5.0000/

0.0001

10.000/

0.001

20.000/

0.001

Kg·cm

10.200/

0.001

20.400/

0.001

30.600/

0.001

51.000/

0.001

102.00/

0.01

204.00/

0.01

Ib·in

8.850/

0.001

17.700/

0.001

26.550/

0.001

44.250/

0.001

88.50/

0.01

177.00/

0.01

Precision

±0.5%

Peak Value Sampling Frequency

2000HZ

Power

8.4V 1.2VX7 Ni-MH Battery group

Charging Time

4~6 Hours

Continuous using time of battery

About 10 Hours

Battery life

≥300 times

Size

400mm×200mm×200mm

Net Weight

12KG

Power adapter

Input: AC 220V 50HZ Output: DC 10V 300mA
