ขาย Fluke FLUKE 9062

The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection.

เครื่องตรวจวัดลำดับเฟส FLUKE 9062

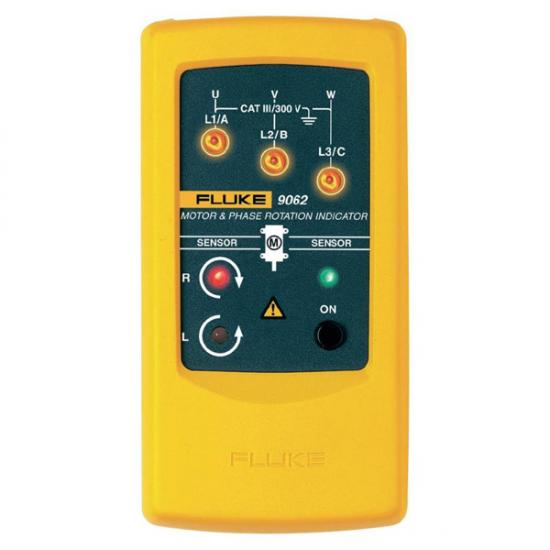

FLUKE 9062 Motor & Phase Rotation Indicator

The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Technical Specifications
Voltage range
Up to 400 V
Phase Display
120-400 V AC
Frequency range
2-400 Hz
Operating timer
Continuous

Environmental Specifications
Operating temperature
0 °C to 40 °C
Operating Altitude
Up to 2000m
Humidity (Without Condensation)
15 % to 80 %
Dust/water resistance
IP 40

Safety Specifications
Electrical Safety
EN 61010,
EN 61557-7
Overvoltage category
CAT III, 300 V

Mechanical & General Specifications
Size
124 x 61 x 27 mm
Weight
1 x 9 V
Batteries
1 x 9 V
