ขาย Fluke Fluke 9040

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. It allows rapid determination of phase sequence and ideally suited for commercial and industrial applications

เครื่องตรวจวัดลำดับเฟส FLUKE 9040

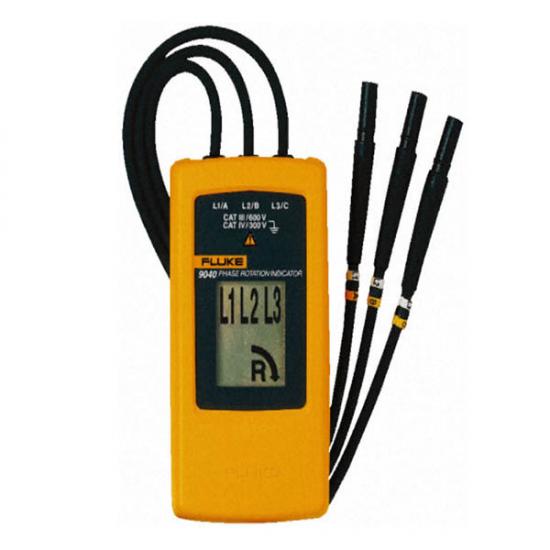

Fluke 9040 Phase Rotation Indicator

Phase rotation indicator with high voltage capability for industrial applications

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Features:

3 phase indication
Indication of phase rotation
Clear LCD display
No battery required

Technical Specifications
Voltage Range 40-700 V
Frequency Range 15-400 Hz
Operating Timer Continuous
Environmental Specifications
Operating Temperature 0 °C to 40 °C
Dust/Water Resistance IP 40
Safety Specifications
Electrical Safety EN 61010,
EN 61557-7
Overvoltage category CAT III, 600 V
CAT IV, 300V
Mechanical and General Specifications
Size 124 x 61 x 27 mm
Weight 200 g
Power supply From unit under test
