ขาย Fluke MT-8200-60A

Fluke Networks MT-8200-60A Intellitone Pro 200 Tone & Probe Kit -- The Fluke Networks MT-8200-60A IntelliTone Pro 200 Kit gives cutting-edge digital and analog cable locating technologies that are advanced as the systems you work with.

เครื่องวัดสายสัญญาณ MT-8200-60A

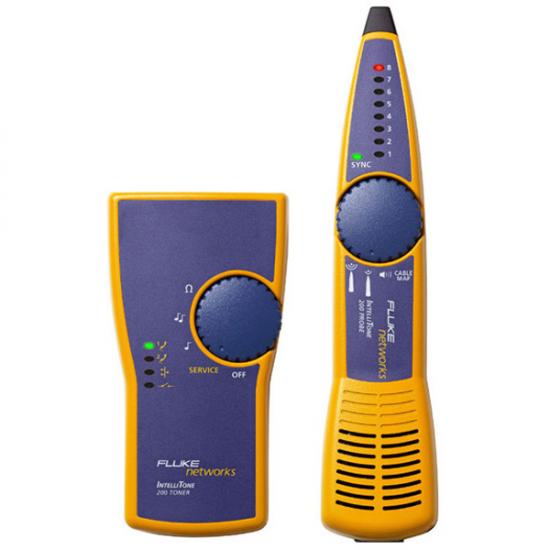

Fluke Networks MT-8200-60A Intellitone PRO 200 Toner and Probe Kit
General specifications
Operating temperature 32 °F to 104 °F (0 oC to 40 oC)
Storage temperature -4 °F to +140 °F (-20 oC to +60 oC)
Operating relative humidity (% RH without condensation) 95 % (50 °F to 95 °F; 10 oC to 35 oC) 75 % (95 °F to 104 °F; 35 oC to 40 oC) Uncontrolled < 50 °F (< 10 oC)
Vibration Random, 2 g, 5 Hz-500 Hz
Shock 1 m drop test with and without module
Safety EN 61010-1 1st Edition + Amendments 1, 2
Altitude 3000 m
EMC EN 61326-1
Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications Copper cabling media, including shielded (STP) and UTP cable; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. POTS telecom service.
Legacy tone Create and detect 1000 Hz compatible tone
Toner Specifications
Dimensions 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)
Display LED
Control Thumbwheel switch
Toner interface Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring
Toner frequency IntelliTone signal: encoded digital signal
Talk battery voltage 6V into 600Ω
Ouptut power 5 V p-p
Voltage protection 100V
Auto power down Turns off automatically after 2 1/2 hours of inactivity
Auto power down Turns off automatically after 2 1/2 hours of inactivity
Probe Specifications
Dimensions 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm)
Display (8) LED indicators, Synch LED indicator
Audio Microprocessor controlled audio files
Control Thumbwheel switch, volume control wheel
Tone detection Detects IntelliTone digital signal and 1 kHz signal from analog toners.
Toner interface Main Mod8 port for cablemap on all 4 pairs of UTP / STP cabling.
Auto power down Turns off automatically after 1 hour of inactivity
