ขาย Extech CT40

The CT40 cable identifier and tester kit combines the flexibility of a standard multimeter with a transmitter/receiver combination that can identify individual wire cores within multi-core cables.

Share on facebook Share on twitter More Sharing Services

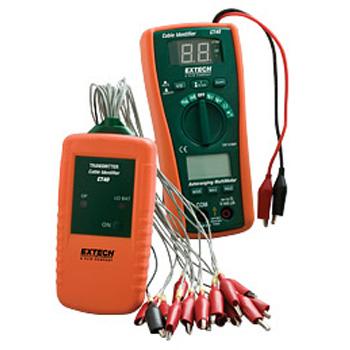

CT40: Cable Identifier/Tester Kit

Transmitter/Receiver enables one person to remotely identify up to 16 wires

Features:

Troubleshoot electrical/electronic circuits and identify up to 16 local or installed lines
MultiMeter functions include: AC/DC Voltage and Current, Resistance, Diode, and Continuity
Transmitter/Receiver enables one person to remotely identify up to 16 wires
Wire voltage check from 5 to 16VDC
Data Hold and Max Hold, Auto power off
Low battery indicator (transmitter and receiver)
Complete with 16-line Transmitter, MultiMeter/Receiver, two 9V batteries, pouch case, and 2 AAA batteries

Specifications:
Display Counts 2,000 count
Basic Accuracy 1.0%
DC/AC Voltage 0.1mV to 600VDC 1mV to 600VAC
DC/AC Current 0.1?A to 200mA
Resistance 0.1?to 20M?
Diode/Continuity Yes
Dimensions 6.3x2.9x1.7"(162x74.5x44mm)
Weight 10.8oz (308g)
Transmitter
Display Two red LED lamps
Test Leads 17 alligator clips (16 red and 1 black (ground))
Cable resistanc e 30k? max
Receiver
Display Two digit blue LED display
Test Leads 2 alligator clips (1 red and 1 black)
