ขาย Sper Sceintific 840063

The level of vibration is a useful guide to the balance, alignment and general condition of pumps, motors, and other machinery.

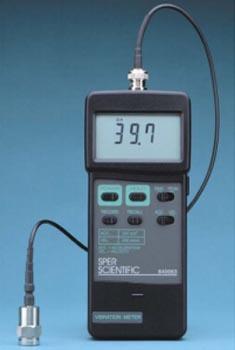

Vibration Meter 840063
เครื่องวัดความสั่น 840063
Portable Handheld Vibration Meter

The level of vibration is a useful guide to the balance, alignment and general condition of pumps, motors, and other machinery. Poor balance, misalignment and looseness results in higher levels of vibration and indicates maintenance is required for operational as well as safety reasons. Measures velocity and acceleration. The large display indicates RMS, Peak, min/max, hold, and low battery. Features auto power off and an RS232 computer interface. Comes ready to use in a foam-lined, hard-shell carrying case, with a detachable strongly magnetic probe, 9V battery and instructions.

Specifications
Acceleration Range Resolution Accuracy
(@ 160 Hz, 80 Hz,
23 ± 5°C)
m/s² 0.5 ~ 199.9 m/s² 0.1 m/s² ±(5 % +2 d) reading
g @ 1 g=9.8m/s² 0.05 ~ 20.39 g 0.01 g ±(5 % +2 d) reading
ft/s² 2 ~ 656 ft/s² 1 ft/s² ±(5 % +2 d) reading

Velocity
mm/s 0.5 ~ 199.99 mm/s 0.1 mm/s ±(5 % +2 d) reading
cm/s 0.05 ~ 19.99 cm/s 0.01cm/s ±(5 % +2 d) reading
inch/s 0.02 ~ 7.87 inch/s 0.01 inch/s ±(5 % +2 d) reading

Frequency
Hz 10Hz~1KHz
