เครื่องวัดความสั่นสะเทือน VM-6360
Vibration Meter
Features
In accordance with ISO2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
Individual high quality accelerometer for accurate and repeatable measurements
Bearing condition monitoring function
LCD digital display
Light weight and easy to use
Wide frequency range (10Hz. to 10k Hz.) in acceleration mode
Automatic power shut off to conserve power.
Specifications
Velocity, Acceleration and Displacement
RPM and Frequency
Velocity : 0.01 - 40.00 cm/s True RMS
0.000 - 16.00 inch/s
Acceleration : 0.1 - 40.00 m/s2 equivalent peak
0.3 - 1312 ft/s2
Displacement : 0.001 - 4.000 mm
0.04 - 160.0 mil, equivalent pk - pk
RPM (r / min) : 60 - 99,990 r/min
Readings should be multiplied by 10 if the display show '10'.
Frequency : 1 - 20 k Hz
LCD display : 4 digits, 18mm LCD
Transducer : Piezoelectric accelerometer
Parameters measured :
Measuring range
Frequency range for measuring
Acceleration : 10Hz. to 1k Hz. in '1' mode
Velocity : 10Hz. to 1kHz.
Displacement : 10Hz. to 1kHz.
10Hz. to 10kHz in '10' mode for bearing condition checking
Accuracy : + / - 5% n + 2 digits
Metric / Imperial conversion
Output : AC Output 2.0V peak full scale (load resistance : above 10k)
Power supply : 4 x 1.5 AAA size batteries (not included)
Operating temperature : 0 - 50°C
Operating Humidity : below 90% RH
Item dimension : 124 x 62 x 30mm / 4.9 x 2.4 x 1.2 inch
Item weight : 120g (not including batteries
Frequency Response:
Acceleration (PK): Mode 1: 10 Hz to 1kHz
Mode 2: 10 Hz to 10kHz (bearing faults)
Velocity (True RMS): 10 Hz to 1kHz
Displacement (PK-PK): 10 Hz to 1kHz
Measurable Range:
Acceleration (PK): 0.02 ~ 20g (0.2 ~ 199.9 mm/ss)
Velocity (True RMS): 0.1 ~ 8 in/sec (0.2 ~ 199.9mm/s)
- Displacement (PK-PK)
-
0.04 ~ 80mil (1 ~ 1999um)
RPM: 5 ~ 99,999 (readings multiplied by 10 if display shows '10'
Power:
4, 1.5V AAA (UM-4) batteries
Auto Power Off:
Yes
Max Hold:
Yes
Low Battery Indicator:
Yes
Overall vibration accuracy:
5%
Operating Temperature:
0° C to +50° C (32° F to +122° F)
Display
Large, 4 Digit LCD
Size:
124mm x 62mm x 30mm (4.88in x 2.44in x 1.18in)
Weight:
120g (0.25 lb) without batteries

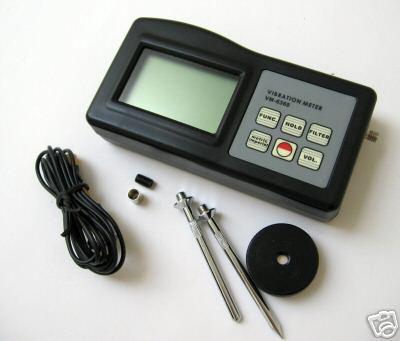

One set of item included
1pc Vibration meter (main unit)
1pc Powerful rare earth magnet
1pc Accelerometer
1pc stinger probe (cone)
1pc stinger probe (ball)
1 instruction booklet
Packed the full set into a carry case (case as picture shown)
