ขาย Digicon TV2000

เครื่องวัดความสั่นสะเทือน TV2000(Aluminium Alloy)

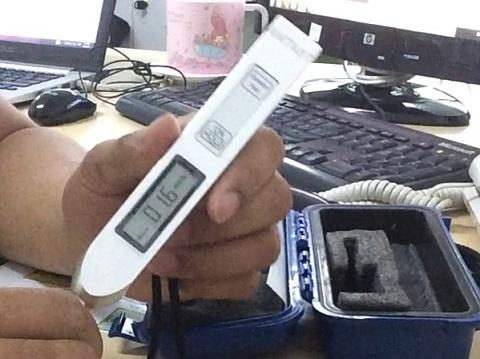

เครื่องวัดความสั่น TV2000

Vibration Meter (Aluminium Alloy)

Features:

This is upgrade model from TV200 and TV260, house materials upgrade from Plastic to Aluminium Alloy.
1.Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
2.Compact size, small weight, easy handling
3.Prompt testing of vibration on the workshop machines
4.For quick checking of unbalance misalignment, bearings and gears
5.Guard against mechanical malfunction
6.Holding tested value for 40 seconds
7.Automatic switch off after 40 seconds
8.The Vibration Tester TV200 is used specially for velocity testing

Model

TV2000

TV2600
Parameters

RMS of vibration velocity (mm/s)

Acceleration, Velocity, Displacement
Testing range Velocity: 0.1mm/s~ 199.9mm/s Acceleration: 0.01~199.9m/s2 (peak)
Velocity: 0.01~199.9mm/s (RMS)
Displacement: 0.001~1.999mm (peak-peak)
Acceleration: 10Hz~1KHz
Frequency range Velocity:10Hz ~ 1kHz Velocity:10Hz ~ 1kHz
Displacement:10Hz ~ 500Hz
Acceleration:10Hz ~ 1kHz
Accuracy

±5%
Display 3-1/2 digits LCD
Power supply two button batteries(LR44 or SR44)
Battery capacity Approx. 4.5 hours working continuously
Operating Temp

0 ~ 40℃
Humidity <85%
Dimension 150mm×22mm × 18mm
Dimension Weight 90g (including batteries)
