ขาย TLEAD DY5500

Ground resistance measurements from 0.01ohm to 2000ohms with 0.01ohm resolution

DY5500

Multi Function Tester

(Insulation Tester+Earth Tester Meter+Voltmeter+Phase Indicator)

Features

Ground resistance measurements from 0.01ohm to 2000ohms with 0.01ohm resolution
Measure insulation resistance to 2000M ohms
Test voltage 250V, 500V, 1000V
AC voltage measurement to 600V
Check phase sequence and phase status
Auto ranging, data hold, LCD backlight
Low battery warning
Complete with test leads, auxiliary earth bars, phase wire, heavy duty carry case and eight AA 1.5V dry cells

Specifications
Model DY5500
Earth Resistance 0~20/200/2000Ω ±(2%+5)
Testing Voltage 250/500/1000V
Insulation Resistance 0.1~2000MΩ ±(3%+5)
Phase Rotation Check yes
AC V 700V ±(2%+5)
Auto range yes
Function Symbol Display yes
Data Hold yes
Low Battery Warning yes
Max. Displays 1999
LCD Backlight yes

General Characteristics
Product Size 190×155×75mm
Product Net Weight approx. 900g
Power AA 1.5V×8

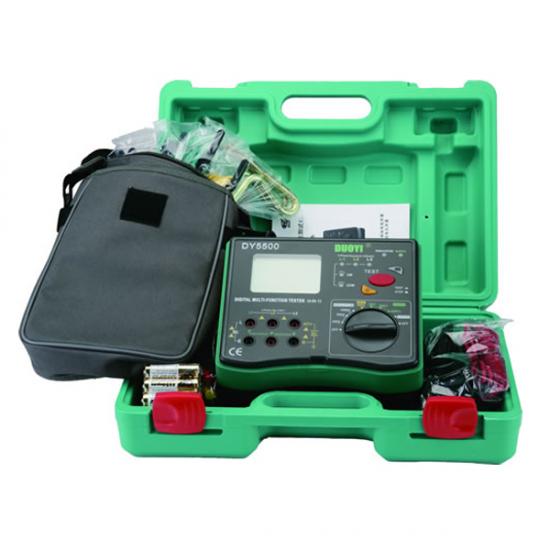

Standard Accessories insulation test leads (DY38), earth bars and wires (DY39), phase sequence test wires (DY40), simplifield test wire for earth resistance (DY41), earth bar case (DY2), carry case (DY5)
