ขาย Extech 380820

This universal AC power source and power analyzer includes data analysis software, making it ideal for determining the quality of input power used by other devices.

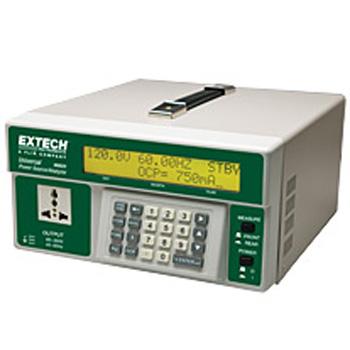

380820: Universal AC Power Source & AC Power Analyzer

Front (100W) and Rear (2000W) Universal Output Sockets

Features:

Standby Power Measurement (10mW to 100W) for desktop and notebook PCs, LCD TVs, AC adaptor/chargers
For testing products from 85 to 250VAC, 45 to 65Hz
Standard Power Measurement:
    100mW to 1000W (110V)
    100mW to 2000W (220V)
Power Quality Measurement (Watts, Power Factor, Voltage, Current, Harmonics)
Cost Function calculates cost per day, month, and year
99 memory locations for preset voltage and frequency output settings
User-programmable Over Current Protection
Programmable through the built-in RS-232 interface
Data acquisition mode captures readings to your PC with a user-programmable sampling rate of 2 to 65,535 seconds
Complete with AC power cord, RS-232 to USB cable and software

Specifications:

Range

Resolution

Accuracy

Front Panel

Output Voltage

85 to 250V

0.1V

±1%

Output Frequency

45 to 65Hz

0.01Hz

±0.1Hz

Power

10mW to 100W

0.1mW

±(1% + 0.05W)

AC Current

5mA to 1.5A

0.1mA

±1%

Power Factor

0 to 1

0.001

±0.04

Rear Panel

Output Voltage

85 to 250V

0.1V

±1%

Output Frequency

45 to 65Hz

0.01Hz

±0.1Hz

Power

100mW to 2000W

0.1mW

±(1% + 0.5W)

AC Current

5mA to 10A

0.1mA

±1%

Power Factor

0 to 1

0.001

±0.04

Harmonics (in amps)

1 to 50th order

0.1mA

±1.4% (1-10th)

THD

0.0 to 999.9%

0.1%

±3%

Input Power Source

110 or 220V; 45 to 65Hz

Dimension

12 x 10.2 x 5.9" (305 x 260 x 151mm)

Weight

21.8lbs (9.9kg)
