ขาย Extech 380562

With 4-wire Kelvin clip test leads, the Extech 380562 provides resolution measurements down to 0.01m.

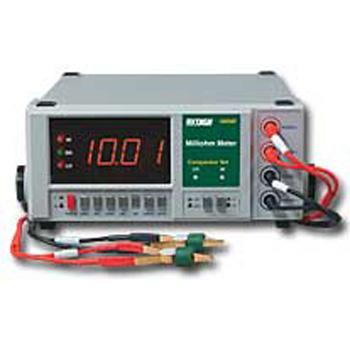

380562: High Resolution Precision Milliohm Meter (220VAC)

Benchtop meter provides resolution down to 0.01mOhm

Features:

7 ranges for wide low resistance measurements
High resolution to 0.01mOhm
1999 count display with 0.8" digits
4-wire test cable with Kelvin clip connectors
Automatic zero
Built-in comparator for Hi/Lo/Go resistance testing or selection

Specifications:
Specifications Range Resolution Current Accuracy (%rdg)
Resistance 20m 0.01 1A ±(0.2% + 6d)
200m 0.1m 1A ±(0.2% + 4d)
2 0.001 100MA ±(0.2% + 4d)
20 0.01 10MA ±(0.2% + 4d)
200 0.1 1MA ±(0.2% + 4d)
2k 0.001k 100μA ±(0.2% + 4d)
20k 0.1k 10μA ±(0.2% + 4d)
Power 110VAC, 60Hz or 220VAC 50
Dimensions/Weight 11 x 8.3 x 3.5" (280 x 210 x 90mm)/ 4.85lb (2.2kg
