ขาย Extech 380396

A digital high voltage insulation tester (220V) with wide range measurement up to 5kV and insulation resistance to 60GΩ.

Share on facebook Share on twitter More Sharing Services

สอบถามข้อมูลเพิ่มเติมเกี่ยวกับสินค้าชิ้นนี้

การจัดส่ง

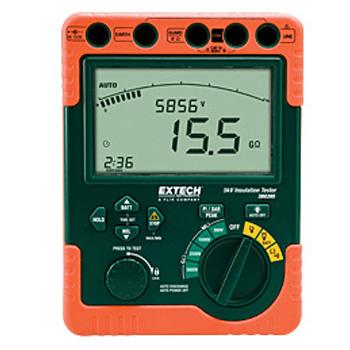

380396: High Voltage Digital Insulation Tester (220V)

Wide Range Measurement up to 5kV with Insulation Resistance to 60GOhm

Features:

Test Voltages of 500V, 1000V, 2500V, and 5000V
Measure Insulation Resistance to 60GOhm
Large 6000 count display with bargraph and backlight
Polarization Index measurement (PI)
Dielectric Absorption Ratio measurement (DAR)
AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak and Relative functions
1 to 15 minute timer function for IR measurements
Resistance measurement
Indication of output voltage and discharge voltage
Auto-discharge function and voltage output warning function
Autoranging, Auto Power off and battery check
Complete with test leads, 8 x C batteries, 220V AC adaptor, and heavy duty carrying case

Specifications:
Test Voltage 500V/1000V/2500V/5000V
Insulation Resistance 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
Accuracy ±2.5% of reading
AC/DC Voltage 0 to 600V
Accuracy ±1% of reading
Resistance 0 to 600Ω
Accuracy ±1.5% of reading
Continuity 50Ω
Power Eight type C batteries
Dimensions 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)
Weight 3.2lbs (1438g)
