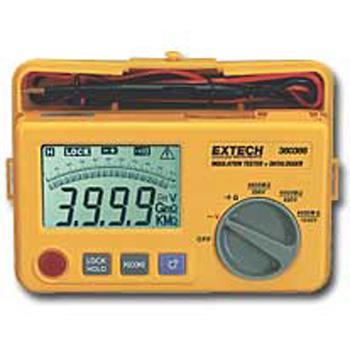

380366: Insulation Tester+Datalogger
Autoranging insulation measurements to 4000MOhm
Features:
250/500/1000V Test Voltages
Stores up to 16,000 readings with single store or a programmable rate of 1 to 65,000 seconds per sample
Large dual 4000 count backlit LCD and fast 50 segment analog display
Data Hold, Test Lock, Audible continuity, and Low Resistance functions
Measure up to 600V AC
RS-232 PC interface with Windows® 95/98/NT/2000/ME/XP compatible software
Specifications:
General specifications
Display Backlit 3-3/4 digit (4000 count) LCD with analog indicator
Sampling rate 2.5 samples/sec. (digital) 10 samples/sec. (analog)
Audible Continuity Low resistance range with audible continuity < 4 Ω
Over range indicator "OL" displayed when measurement exceeds range limits
Low battery indicator " - +" symbol displayed when battery voltage is low
Datalogger memory 16000 readings
Datalogger Sample Rate Programmable - 1 to 65400 sec/sample or single manual record
Power source Eight 1.5V AA cells
Power consumption 20 to 90mA depending upon function (40 hours typical)
Environmental CAT III
Altitude 2000 meters for indoor use only
Operating conditions 32 to 104°F (0 to 40°C) < 80% RH
Storage conditions 14 to 140°F (-10 to 60°C) < 80% RH
Dimensions/Weight 7.5 x 5.5 x 3" (190 x 140 x 77mm) / 2 lbs (900g)
Environmental specifications Installation Category III 600V Pollution Degree Altitude up to 2000 meters Intended for indoor use only
