ขาย Extech 380320

The Extech 380320 analog high voltage megohmmeter is capable of generating test voltages up to 1 kV to test electrical insulators.

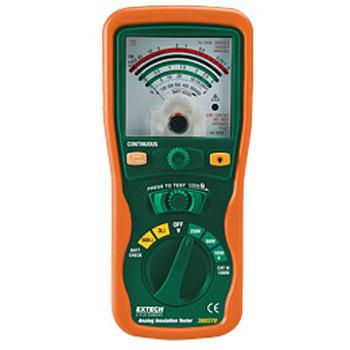

380320: Analog Insulation Tester

Manual ranging Insulation tester for 250V, 500V, and 1000V test voltages

Features:

Large easy to read analog display
Three test voltages 250V, 500V, and 1000V
Insulation Resistance to 400MOhm
Lock Power On feature for extended test times
Automatic discharge circuit
Measures Continuity to 3Ohm, Resistance to 500Ohm, and AC Voltage to 600V
Complete with heavy duty test leads, alligator clip test lead, 6 x AA batteries, hanging strap and hard carrying case

Specifications:
Test Voltage 250V/500V/1000V
Insulation Resistance 0 to 100MΩ, 0 to 200MΩ, 0 to 400MΩ
Accuracy ±5% of scale
AC Voltage 0 to 600V
Accuracy ±5% of scale
Resistance 1 to 500Ω
Accuracy ±3% of scale
Continuity 3
Accuracy ±3% of scale
Dimensions 7.9 x 3.6 x 2” (200 x 92 x 50mm)
Weight 1.2lbs (546g) includes batteries
