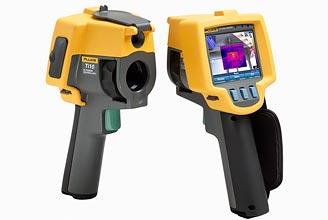

Fluke Ti10 Thermal Imager
Enhanced problem detection and analysis capabilities with IR-Fusion® Technology. Simply scroll through the different viewing modes quickly to better identify trouble areas in Full IR thermal, picture-in-picture, or automatic blend visual and thermal images.
Optimized for field use in harsh work environments.
Engineered and tested to withstand a 2 m (6.5 ft) drop—When was the last time you dropped a tool?
Withstands dust and water—tested to an IP54 rating.
Delivers the clear, crisp images needed to find problems fast.
Identify even small temperature differences that could indicate problems with excellent thermal sensitivity (NETD).
Intuitive, three-button menu is easy to use—simply navigate with the push of a thumb.
Everything needed to get started is included.
Adjustable hand strap for left-or right-handed use.
Everything needed to get started is included.
Training DVD is now included free. See how easy it is to set up your thermal imager, create professional reports with SmartView software and learn thermography theory with step-by-step video instructions.
Manufactured in the U.S.A.
Specifications
Temperature
Temperature measurement range (not calibrated below -10 °C) -20 °C to +250 °C (-4 °F to + 482 °F)
Temperature measurement accuracy
± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
Imaging performance
Field of view 23° x 17°
Spatial resolution (IFOV) 2.5 mRad
Minimum focus distance
Thermal lens: 15 cm (6 in)
Visible (visual) light lens: 46 cm (18 in)
Focus Manual
Image frequency 9 Hz refresh rate
Detector type 160 X 120 focal plane array, uncooled microbolometer
Infrared lens type 20 mm F = 0.8 lens
Thermal sensitivity (NETD) ≤ 0.13 °C at 30 °C target temp. (130 mK)
Infrared spectral band 7.5 μm to 14 μm
Visual camera 640 x 480 resolution
Image presentation
Palettes Ironbow, blue-red, high contrast, grey
Level and span Smooth auto-scaling and manual scaling of level and span
Minimum span (in manual mode) 5 °C (9 °F)
Minimum span (in auto mode)
Fast Auto/Manual Range Toggle Fast Auto Rescale 10 °C (18 °F)
IR-Fusion® information Full infrared or picture-in-picture
Picture-In-Picture (PIP) 100 % IR displayed in center 320 x 240 pixels
Full screen (PIP off) 100 % IR displayed in center 640 x 480 LCD
Palettes Ironbow, blue-red, high contrast, grey
Image capture and data storage
Storage medium SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each or 3000 basic (.bmp) IR images)
File formats
Non-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp) files
Export file formats w/SmartView™ software JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF
General specifications
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity 10 % to 95 % non-condensing
Display 9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
Controls and adjustments
User selectable temperature scale (°C/°F)
Language selection
Time/Date set
Software SmartView® full analysis and reporting software included
Batteries Internal rechargeable battery pack (included)
Battery life Three to four hours continuous use (assumes 50 % brightness of LCD)
Battery charge time Two hours for full charge
AC operation/charging AC adapter/charger (110 Vac to 220 Vac, 50 Hz to 60 Hz). Charges battery while imager is operating. Universal ac mains adapters included.
Power saving Sleep mode activated after five minutes of inactivity, automatic power off after 20 minutes of inactivity
Safety standards CE Directive: IEC/EN 61010-1 2nd Edition Pollution Degree 2
Electromagnetic compatibility EMC directive: EN61326-1 C-Tick: IEC/EN 61326 US FCC: CFR 47, Part 15 Class A
Vibration 2 G, IEC 68-2-29
Shock 25 G, IEC 68-2-29 {2 m (6.5 ft) drop, 5 sides}
Dimensions (HxWxL) 0.27 m x 0.13 m x 0.15 m (10.5 in x 5 in x 6 in)
Weight 1.2 kg (2.65 lb)
IP rating IP54
Warranty Two-years
Calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, English, Finnish, French. German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
ACCESSORIES
Model Name Description
Fluke Ti10 9 Hz Thermal Imager
Thermal imaging camera w/ 20 mm lens.
Includes:
AC power supply/battery charger (including mains adapters)
SD memory card
SD card reader (USB) for downloading images into your computer
SmartView™ software with free software upgrades for life
Rugged hard carrying case
Soft transport bag
Hand strap
Users manual
Warranty registration card
