Digital Oscilloscopes

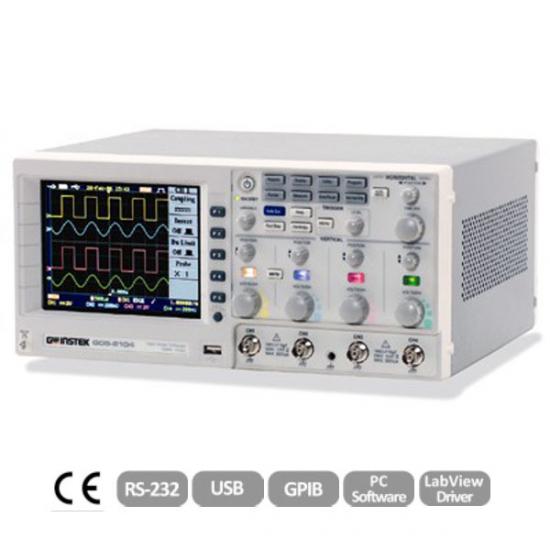

GDS-2104
Descriptions:
The GDS-2000 Series Digital Storage Oscilloscopes feature a bandwidth of 60, 100 or 200MHz. These 2 or 4 channel instruments deliver a sample rate of 1G Samples/s and a maximum record length of 25K Samples. The scopes can be programmed to take up to 24 different measurements automatically and results can be displayed on the large 5.6 inch color TFT display. A ‘Go/ No Go’ mode is particularly useful in a production set-up. USB host and device interfaces are provided as standard, with GPIB as an option.
USB Host/Device: Support USB Printer and USB Flash disk. Use a USB thumb drive to store data, images, settings, and even do firmware updates via the USB.
Features:
Free 128 MB USB Storage Device
Free Remote Control Software (program the unit, download data, download images, etc)
60MHz bandwidth
2 channels
1GS/s Real-Time and 25GS/s equivalent-Time Sampling
25K Points Record Length Maximum
Large 5.6-in TFT Color Display
USB Host/Device: Support USB Printer and USB Flash disk. Use a USB thumb drive to store data, images, settings, and even do firmware updates via the USB.
DC Battery Power Operation (optional)
Up to 24 Automatic Measurements
Video/Pulse Width/Event-Delay/Time-Delay Trigger
FFT Analysis
Up to 8ns Peak Detection
“Program Mode” and “Go-No Go” Function
RS-232 and GPIB Interface
Multi-Language and Build-in On-Line Help
A Large 8 ?12 Divisions Waveform Display
Ultra-bright color TFT display - Wide-angle viewable area
Store waveform raw data (CSV files)
Capture screen image as BMP files
Print waveform via USB printer
Better Performance - Faster Sampling Rate, Longer Memory & Advanced Trigger
More Features - Auto Frequency Counter, Auto Setup Sequence, GO/NO GO, 12 Div Display, Simultaneous Cursors
More Value Added Features - RS-232C (Std.), USB Host/Device (Std.), GPIB IEEE 488.2 (Opt.), Free Software
Valued Plus Features - Real Time Frequency, Counter, Auto Setup Sequence, Multi-Language, Built-in Help Menu
Specifications:
Model GDS-2062 GDS-2064 GDS-2102 GDS-2104 GDS-2202 GDS-2204
Bandwidth 60MHz 60MHz 100MHz 100MHz 200MHz 200MHz
Channels 2 4 2 4 2 4
Sample Rate 1.0 GS/s
Record Length 25k samples maximum
Display 5.6’’ Color TFT LCD
USB Host/Device RS232/Go-NoGo Standard
GPIB Battery Option
Display TFT Color
Viewing Angle Up to +/- 45 deg.
Advanced Trigger Auto-Level Trigger
Event-Delay Trigger
Time-Delay Trigger
Pulse-Width Trigger
TV-Line Trigger
Measurement Functions
Up to 24 Automatic Measurement Functions:
Vhi, Vlo, Vmax, Vmin, Vp-p, Vavg, Vrms, Vamp, Rise Time , Fall Time,
Width+ , Width-, Period , Duty cycle, Frequency, Delay
FFT (Fast Fourier Transfer) Built-in FFT as standard
Enable user to switch from time domain to frequency domain!
Useful math function for school education
Cursor Measurement Simultaneous Horizontal Cursors ?V and Vertical Cursors ?T
Adjustable Probe Compensation Signal Frequency Range: 1kHz~100kHz
Duty Cycle: 5%~95%
USB Host/Device Interface USB 1.1 & 2.0 device & host supported
Software Support Real time Video display on PC Monitor through USB.
Captured Waveform Data transferred to PC through USB/RS-232C/GPIB.
LabView Driver
