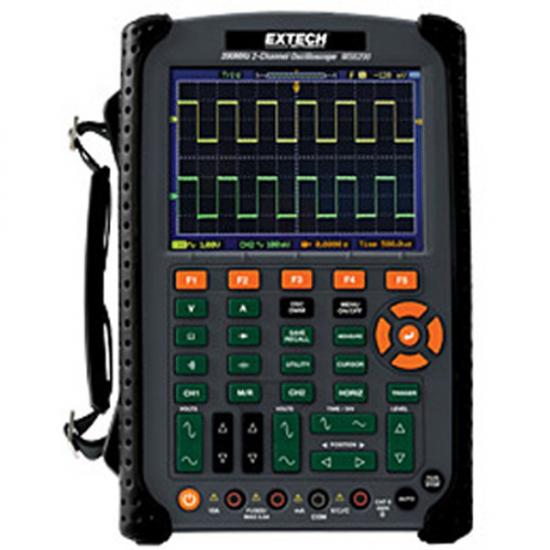

MS6200: 200MHz 2-Channel Digital Oscilloscope
5.6" color LCD display, 23 automatic measurements, waveform recorder
Features:
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
Built-in 6,000 count True RMS MultiMeter with analog bargraph
Easy-to-use pop-up menu with built-in multi-language system
23 Automatic Measurements
Waveform Math: Add, Subtract, Multiply, and Divide
Store and recall up to 1000 waveform screens and setups using the installed 2G microSD card
Automatic cursor tracking measurements
Pass-Fail function compares a stored waveform to an unknown input
Average Mode for smoothing waveforms
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems
Square Wave Output (2V, 1kHz) for probe adjustment
Complete with two 1X/10X oscilloscope probes, test leads, 7.4V Li-Ion battery, universal AC charger, and carrying case
Specifications:
