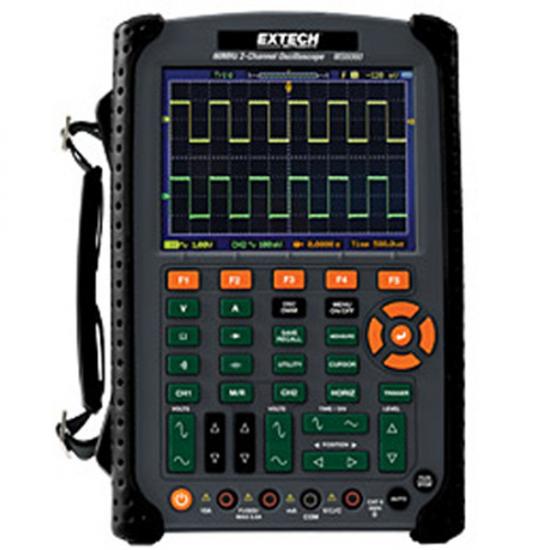

MS6060: 60MHz 2-Channel Digital Oscilloscope
5.6" color LCD display, 23 automatic measurements, waveform recorder
Features:
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
Built-in 6,000 count True RMS MultiMeter with analog bargraph
Easy-to-use pop-up menu with built-in multi-language system
23 Automatic Measurements
Waveform Math: Add, Subtract, Multiply, and Divide
Store and recall up to 1000 waveform screens and setups using the installed 2G microSD card
Automatic cursor tracking measurements
Pass-Fail function compares a stored waveform to an unknown input
Average Mode for smoothing waveforms
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems
Square Wave Output (2V, 1kHz) for probe adjustment
Complete with two 1X/10X oscilloscope probes, test leads, 7.4V Li-Ion battery, universal AC charger, and carrying case
Specifications:
Sample rate per channel: 500MS/s
Record Length: 1M points per channel
Display Size: 5.6" (142mm) color LCD; 640 x 480 pixels
Channels: 2
Vertical Sensitivity: 2mV/div to 5V/div
Vertical Resolution: 8 bits
Glitch Capture: Yes
Sample Mode: Normal, Average, Peak Detect
Trigger Modes: Edge, Pulse, Alt, Video, Slope
Trigger Source: CH1, CH2
Trigger Coupling: AC, DC, LF, HF, Noise Reduction
Input impedance: 1MΩ/20pF
Max Input Voltage: 300V (peak)
Cursor Measurement: Voltage and time; Delta (CH1-CH2)
AC Voltage: 60mV, 600mV, 6V, 60V, 600V
DC Voltage: 60mV, 600mV, 6V, 60V, 600V, 800V
AC/DC Current: 60mA, 600mA, 10A
Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
Capacitance: 5nF to 400μF
Diode and Continuity: Yes
Power Supply: 3 hours Li-ion rechargeable battery; AC Charger
Dimensions/Weight: 9.6 x 6.4 x 2" (245 x 163 x 52mm) / 2.6lbs (1.2kg)
