AE-800 Digital Megohmmeter
เครื่องวัดความต้านทานผิว
AE-800 Digital Megohmmeter:
-dependable and easy to use
-using in all facets of material production
-built-in electrodes
AE-800 Digital Megohmmeter
INTRODUCTION
The AE-800 Digital Megohmmeter is a dependable and easy to use audit kit for conductive and dissipative surfaces. This meter is designed to be used in all facets of material production including engineering, maintenance, quality control, incoming inspection, manufacturing, research, or sales departments for testing of anti-static mats, floor finishes, paints, wrist straps, smocks, foot wear, bags and containers.
When using the built-in electrodes, the meter’s test values for surface resistivity are in ohms per square. When using the external five pound electrodes, the meter’s test values for resistance are in ohms (although they are displayed in ohms/sq).
The AE-800 Digital Megohmmeter kit measures surface resistivity, resistance, temperature and humidity. It is designed to test conductive, anti-static, and static dissipative surfaces for electrical resistivity/resistance according to EOS/ESD, CECC, ANSI, ASTM and UL test procedures.
The internal parallel electrodes comply with DIN EN 100 015/1 & ANSI/ESDA-S11.11. The five pound electrodes can be externally connected for tests according to IEC 61340-4-1, ANSI/ESDA S4.1 & ANSI/ESDA S7.1.

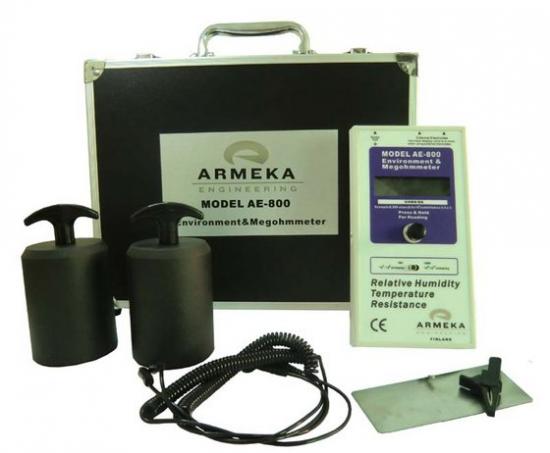

AE-800 Digital Megohmmeter Includes:
Tester
Two 5lb probes
One ground cord
Two accordion cables (monaural to banana)
110 power adapter*
9 volt battery
Foam lined carrying case
Certificate of calibration
*AE-800 Celsius models come equipped with 220v power adapter unless specified
AE-800 Optional Accessories
Concentric Ring Probe
Miniature Ring Probes
Garment Clips for smocks
Limits
Resistivity: 103-1012 ohms/sq
Resistance: 103-1012 ohms
Relative Humidity: 10% - 90% RH
Temperature: 0°C– 37.7°Cif Celsius model was purchased
Measuring voltage: 10v and 100v
DECADE SCALE
103 = 1 kilohm
104 = 10 kilohms
105 = 100 kilohms
106 = 1 meg ohm
107 = 10 meg ohms
108 = 100 meg ohms
109 = 1000 meg ohms
1010 = 10,000 meg ohms
1011 = 100,000 meg ohms
1012 = 1,000,000 meg ohms
The test value is indicated on the LCD display. Unlike meters with LEDS that indicate only the decade the measured value falls within, the AE-800 will show the actual value.
27 ohms (2.7x107) is displayed as 2.7 e07 ohms/sq
