AE-700 Surface Resistance MeterAE-700 is an ultra wide-range, battery operated, portable instrument for measuring surface resistivity of virtually and flat surface conforming to ASTM D-257 standard by using recommended parallel bar sensing probe. In the circuit industry, work bench surfaces, static dissipative table and floor mats, converyor belts, etc, have resistance values which need to confirm to stringent specifications, Moreover, these values are expected to fall with in specified limits. The surface resistance meter can play a vital role in monitoring and checking the resistivity characteristic of the above items

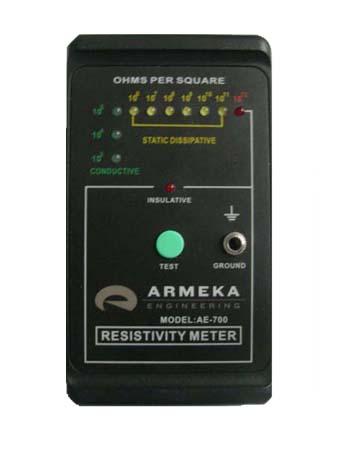

AE-700 Surface Resistance Meter
Detailed Product Description:
AE-700 Surface Resistance MeterAE-700 is an ultra wide-range, battery operated, portable instrument for measuring surface resistivity of virtually and flat surface
conforming to ASTM D-257 standard by using recommended parallel bar sensing probe. In the circuit industry, work bench surfaces, static dissipative table and floor mats,
converyor belts, etc, have resistance values which need to confirm to stringent specifications, Moreover, these values are expected to fall with in specified limits. The surface
resistance meter can play a vital role in monitoring and checking the resistivity characteristic of the above items.
Specification:
Operating Temperature: 0 degree~50degree
Relative Humidity: 0%~80%RH
Test voltage: 9V
Size: 137(L)x76(W)x30(D)mm
Weight: 120g
Accuracy: ±1/2 decade
Repeatability:±5%
Measurement range: 10e3-10e12 ohms per square
Resolution: one decade
Indication: Visual by LEDs
