ขาย Mitutoyo 500-196-20

A digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with ABSOLUTE System scale for error free, high-speed measurement.

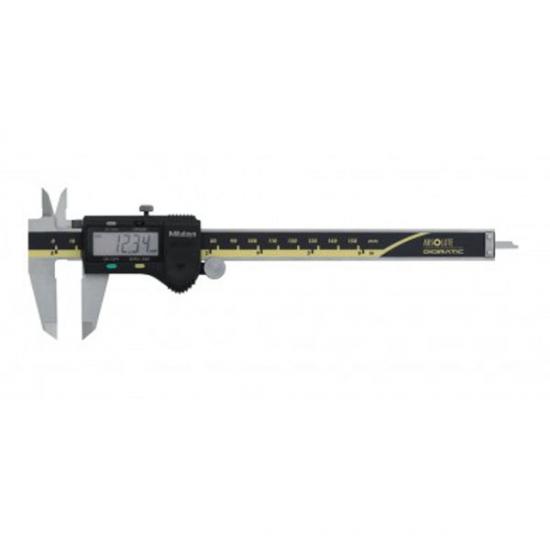

ABSOLUTE Digimatic Caliper 0-150mm / 0-6"
Mitutoyo 500-196-20

Features:

Large and clear LCD readout.
The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button also allows return to the absolute (ABS) mode for displaying the true position from the origin (usually the jaws-closed point).

ABSOLUTE Digimatic Measurement

Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting.

Specifications:

No. 500-196-20
Type Standard
Range 0-150mm / 0-6"
Resolution 0.01mm / .0005"
Accuracy ±0.02mm / ±.001"
Scale type Absolute electromagnetic linear encoder
Repeatability 0.01mm
Fine adjustment with thumb roller
Depth bar Blade
Display LCD
Max. response speed Unlimited
Battery SR44
Battery Life Approx 3.5 years under normal use
Functions Origin-set, Zero-set, Inch/mm, Automatic, Low Voltage alarm, Counting Value Composition Error alarm.
